Description

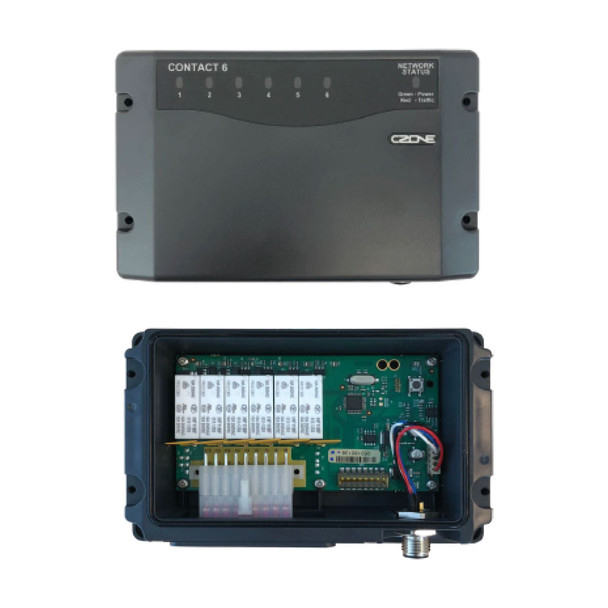

C-Zone Contact 6 Interface with Seals and Plug
The Contact 6 is a digital control and monitoring module that can be networked with other CZone products or a stand alone. The Contact 6 has six independent channels that are positively or negatively switched and is ideal for smaller marine applications or recreational and specialty vehicles.
Features
• Entry level digital switching module for Marine and RV applications
• Stand alone or networked with other CZone products
• Compatible with CZone integrated Multi Function Displays (MFDs)
• Six independent relay channels with positive and negative switching
• Uses proven CZone technology
• Internal auto-resetting PTC fuses (112818,112819 Only)
• Electronic relay bypass switch
• Status LEDs/fault codes for all channels
• Low current draw – 35mA
• Cost effective Amp connectors
• IPX5 ingress protection
• NMEA2000 compliant
| Part Number |
112817-BLA
|
112818-BLA
|
|---|---|---|
| Output Channels | 6 x Relay | 6 x Relay |
| Output Ratings | 7.5A max per channel | 7.5A max per channel |
| LED Status indication | Yes | Yes |
| Parallel | Yes | Yes |
| Dimming | No | No |
| Current Sensing | No | No |
| Circuit Protection | External | Internal PTC Fuses (auto-reset) |
| Overcurrent Alarm | No | No |
| Circuit Bypass | Yes (electronic) | Yes (electronic) |
| Connector | Amp 18 Way Connector | Amp 18 Way Connector |
| Max Wire Size | 16AWG (1mm²) | 16AWG (1mm²) |
| Maximum Current | 30A Continuous | 30A Continuous |
| Power Consumption | 35mA (standby) | 35mA (standby) |
| Voltage | 12/24V | 9-16V |
| Ingress Protection | IPx5 | IPx5 |
| Communication | NMEA 2000 | NMEA 2000 |
| Operating Temp | -15 °C to +55 °C (5 °F to 131 °F) | -15 °C to +55 °C (5 °F to 131 °F) |
| Certification | CE, NMEA | CE, NMEA |
