Description

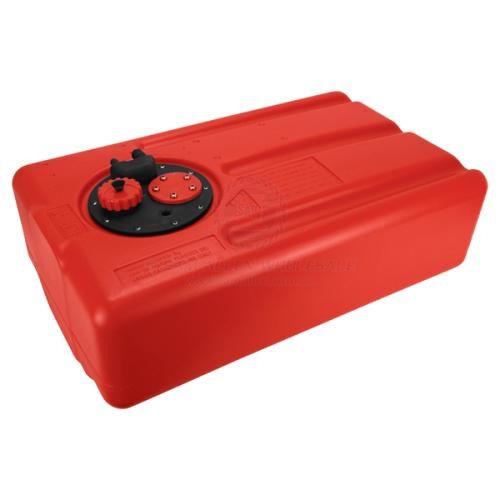

Can-SB Underfloor Fuel Tanks - Low Profile Polyethylene
The Can-SB Underfloor Fuel Tanks - Low Profile Polyethylene is a polyethylene underfloor tank designed for both petrol and diesel applications. Its compact low-profile design allows for versatile installation, while multiple ports and fittings provide flexibility for fuel line connections and gauge integration.
##features##
Features
- Moulded from high-density polyethylene, suitable for petrol or diesel.
- Removable inspection port for easy maintenance.
- Vented cap with stepped tail (16mm / 19mm) for external breather.
- 10mm tail for fuel hose connection.
- Blanked 1/4 inch BSP port for second fuel pickup or diesel return.
- Provision for a standard 5-hole fuel sender or gauge.
- ISO 21487 CE certified for quality and safety.
##features##
##specifications##
| Specifications Chart | ||||||
| Part No. | 37342-SAM | 37344-SAM | 37346-SAM | 37347-SAM | 37350-SAM | 37352-SAM |
| Length | 650mm | 850mm | 950mm | 1050mm | 850mm | 1050mm |
| Width | 390mm | 390mm | 390mm | 390mm | 390mm | 390mm |
| Height | 200mm* | 200mm* | 200mm* | 200mm* | 290mm* | 290mm* |
| Weight | 4.8kg | 6.7kg | 7.7kg | 8.7kg | 7.2kg | 9.2kg |
| Capacity | 41Ltr | 54Ltr | 61Ltr | 67Ltr | 83Ltr | 103Ltr |
| Note | *Tank height dimension excludes fittings (+30mm). | *Tank height dimension excludes fittings (+30mm). | *Tank height dimension excludes fittings (+30mm). | *Tank height dimension excludes fittings (+30mm). | *Tank height dimension excludes fittings (+30mm). | *Tank height dimension excludes fittings (+30mm). |
##specifications##
