Description

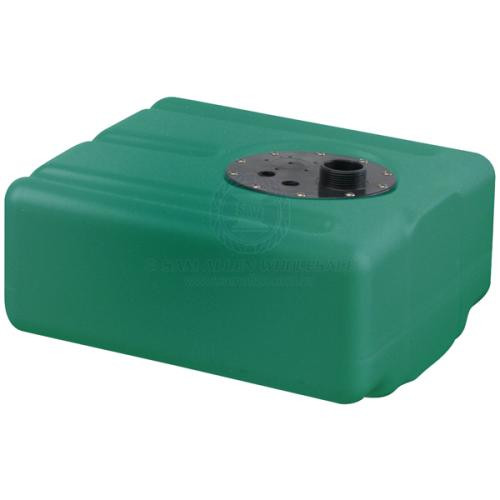

Can-SB Water Tank
Moulded green HDPE water tanks suitable for drinking water, featuring removable inspection port, vented cap, stepped outlet and vent tails, and installation pattern for standard 5-hole level sensor. Ideal for marine or RV applications.
- Moulded from high density green polyethylene.
- Includes removable inspection port with pick-up tube.
- 1-1/2 inch BSPF vented cap for easy filling and venting.
- 3/8 inch BSPM x 3/8 inch / 1/2 inch stepped outlet tail and 3/8 inch BSPM x 5/8 inch / 3/4 inch stepped vent tail included.
- Installation pattern for standard 5-hole level sensor moulded into tank.
##specifications##
Specifications
| Part No. | 45280 | 45282 | 45284 | 45286 | 45290 | 45291 | 45292 |
| Length | 450mm | 550mm | 650mm | 750mm | 550mm | 850mm | 750mm |
| Width | 390mm | 390mm | 390mm | 390mm | 390mm | 390mm | 390mm |
| Height | 200mm | 200mm | 200mm | 200mm | 290mm | 200mm | 290mm |
| Capacity | 32L | 39L | 45L | 52L | 57L | 60L | 77L |
| Note | Add 30mm height for vented cap. Add 80mm height for swivel elbow inlet tail 45275, 100mm for 45261. | ||||||
