Description

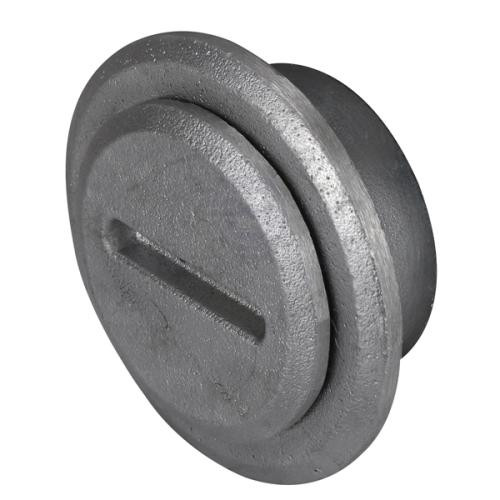

Deck Filler Alloy Weld-In Slotted Cap No Tail 1-3/4in BSP
The 1-3/4" BSP Alloy Deck Filler features a durable alloy slotted cap designed for secure deck installation. With a weld-in flange and complete rubber O-ring seal, this filler is ideal for marine applications requiring reliable access and sealing for fuel or water tanks.
##features##
Features
- Slotted alloy cap for easy access and secure closure.
- Weld-in flange design for a strong, permanent installation.
- Supplied with rubber O-ring seal for a watertight fit.
- Australian made, built to withstand marine conditions.
- Threaded base and hose tail options available for versatility.
##features##
##specifications##
| Specifications Chart | |
| Part No. | 29606-SAM |
| Flange O.D. | 86mm |
| Tail Dia. | - |
| Protrusion | 13mm |
| Intrusion | 21mm |
| Cut Out | 62mm |
| Note | • Threaded base and hose tail options available. • Designed to be welded in. • Slotted type cap - unmarked. • Supplied complete with rubber O-ring seal. • No pre-drilled holes. • Australian made. |
