Description
Door Lock - Mortise - Stainless Steel
The Door Lock - Mortise - Stainless Steel is designed for secure and durable door locking. Made from cast 316G polished stainless steel, this mortise lock set features slim-line, easy-grip handles and is suitable for Right Hand inwards and Left Hand outwards hinged doors. With a security unlock slot on the outside and a simple button lock from the inside, this set provides both ease of use and reliable security.
##features##
Features
- Crafted from cast 316G polished stainless steel for corrosion resistance and strength.
- Locks by turning a button from the inside for easy operation and security.
- Suitable for both Right Hand inwards and Left Hand outwards hinged doors, viewed from the outside.
- Security unlock slot on the outside for emergency access.
- Slim line, easy-grip handles for convenient use.
- Flat strike plate for added durability and secure closure.
- Lock and Face Plate mount holes (4mm c/s) for simple installation.
- Striker Plate mount holes (3mm c/s) for secure mounting.
##features##
##specifications##
| Specifications Chart |
|
| Part No. | 30420-SAM |
| Type | Mortise Lock |
| Handle Length | 85mm |
| Lock/Handle Face Plate (Dia.) | 50mm |

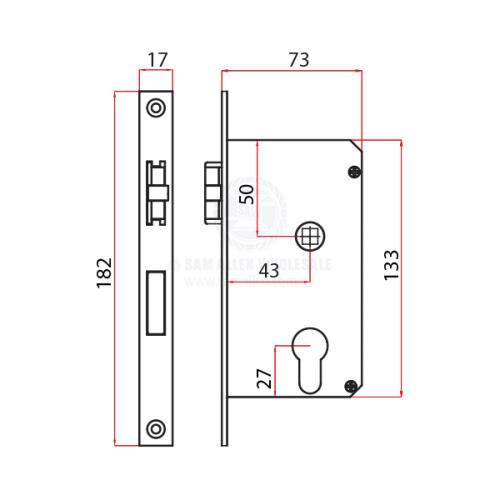

| Lock (W x D x H) | 17mm x 63mm x 183mm |
| Lock Cut Out (W x D x H) | 15mm x 60mm x 138mm |
| Door Thickness | 22mm - 40mm |
