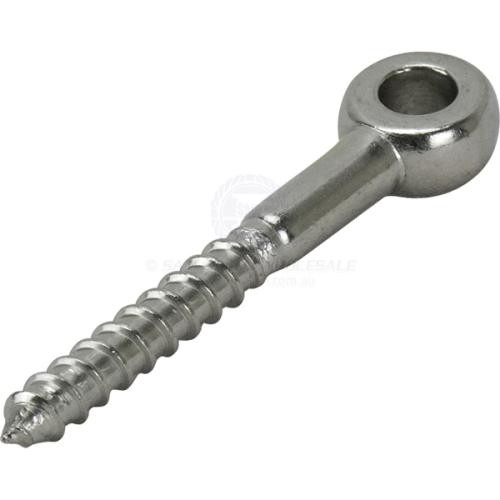

Eye Screws - Small Head - Stainless Steel - 316G
Compact and corrosion-resistant, these Small Head Eye Screws are manufactured from 316G stainless steel, ideal for light to medium-duty fastening applications in marine, architectural, and industrial environments. The smaller head profile offers a clean, unobtrusive appearance while maintaining high strength.
## Features##
Features
- 316G stainless steel construction
- Small head for a compact and neat appearance
- Excellent corrosion resistance for outdoor and marine use
- Cast stainless design ensures strength and durability
## Features##
## Specifications##
Specifications
| Part No. | Description | Dia. | A | B | C | E |
|---|---|---|---|---|---|---|
| 56161 | Screw eye 316G cast SS 6mm x 40mm | 6.0mm | 40.0mm | 30.0mm | 6.3mm | 7.0mm |
| 56164 | Screw eye 316G cast SS 6mm x 60mm | 6.0mm | 60.0mm | 40.0mm | 6.3mm | 7.0mm |
| 56165 | Screw eye 316G cast SS 8mm x 60mm | 8.0mm | 60.0mm | 40.0mm | 8.4mm | 9.0mm |
| 56165A | Screw eye 316G cast SS 8mm x 80mm | 8.0mm | 80.0mm | 55.0mm | 8.4mm | 9.0mm |
| 56166 | Screw eye 316G cast SS 10mm x 80mm | 10.0mm | 80.0mm | 55.0mm | 10.2mm | 11.0mm |
| 56167 | Screw eye 316G cast SS 12mm x 100mm | 12.0mm | 100.0mm | 65.0mm | 12.1mm | 13.0mm |
