Description

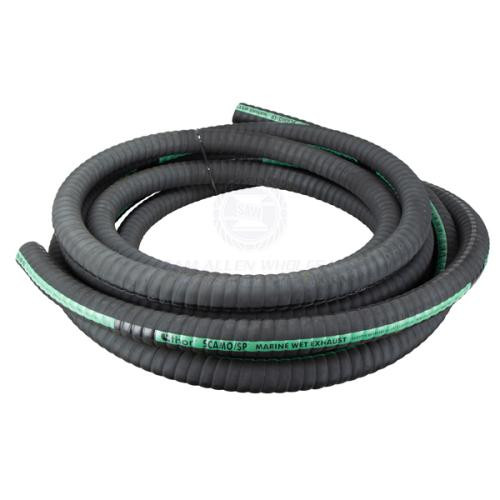

Flexible Exhaust Hose - Per/meter

• Hard wall, flexible rubber, marine exhaust hose.
• Reinforced with double steel wire helix with high strength synthetic textile yarn.
• Also suitable for use with heat exchangers on pleasure boats up to 24m length.
• Smooth black rubber core resistant to inert gases, hot water, sea water and low concentrations of chemical products.
• Corrugated, fabric finished rubber cover provides resistance to abrasion, heat and weathering.
• Minimum bend radius of 1.5 x I.D.
• Temperature range: -30°C to +100°C.
• Standards: SAE J 2006:2003 R2 - ISO 13363:2004 Type 2 Class B.
• Approved: LLOYD’S REGISTER N. 96/00127 - R.I. NA N. DIP 075110CS.

## Specifications##

Specifications Chart
Part No.	76090-SAM	76102-SAM	76140-SAM	76145-SAM	76151-SAM	76160-SAM	76176-SAM
Length	1m	1m	1m	1m	1m	1m	1m
Inside Dia.	90mm	102mm	40mm	45mm	51mm	60mm	76mm
Wall Thickness	5mm	5mm	4mm	4mm	5mm	5mm	5mm
Working Pressure	45 PSI	45 PSI	45 PSI	45 PSI	45 PSI	45 PSI	45 PSI
Burst Pressure	135PSI	135PSI	135PSI	135PSI	135PSI	135PSI	135PSI
Sold Per	Sold & Priced Per Meter
Note	Sold in cut lengths per metre or in full 20m rolls.
