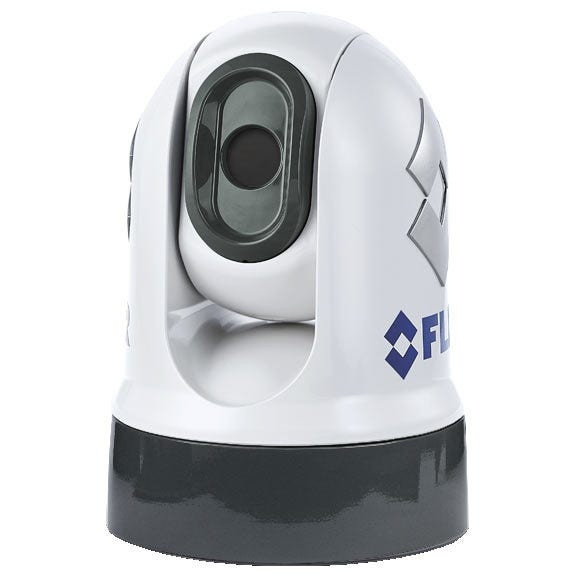

FLIR M232 Thermal IP Camera (320 x 240, 9Hz) with Pan, Tilt and Electronic Zoom

The M232 pan and tilt camera is one of FLIR's smallest and most affordable marine thermal cameras.

Featuring a resolution of 320 × 240, the M232 improves safety by revealing vessels and obstacles at night.

Enjoy 360-degree viewing while underway.

Combine the M232 with a Raymarine Axiom MFD and take advantage of FLIR ClearCruise™ intelligent thermal analytics.

Make Navigation Safer
The M232 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day.

The M232 also helps boaters find people in the water faster than using spotlights and radar alone.

Optimized Viewing
M232 features a full 320x240 resolution for optimal horizon-to-horizon viewing and 4X continuous e-zoom.

Easy to Install on Any Vessel
The combination of the M232’s small, lightweight design and IP video connectivity make it a snap to install and integrate with Raymarine MFDs.

Enhanced Awareness With ClearCruise™
Combine the M232 with a Raymarine Axiom MFD and take advantage of FLIR's ClearCruise intelligent thermal analytics.

ClearCruise provides audible and visual alerts when "non-water" objects such as boats, obstacles, or navigation markers appear in the scene.

Sku 46114N Augmented Reality and video stabilization (when connected to an Axiom) This enhances boaters’ overall situational awareness, both day and night.

Installation Note: ClearCruise features are only available on conventional ball-up installations. ClearCruise is not available on ball-down installations. Please consult your FLIR dealer for more details.

## Specifications##

Specifications

Thermal Camera

• Focus: Fixed 12 ft (3m) to infinity
• Image Processing: FLIR Proprietary Digital Detail Enhancement
• Thermal Detector Type: 320 × 240 VOx Microbolometer
• Thermal E-Zoom: 4x Continuous
• Thermal Field of View: 24° × 18°
• Thermal Focal Length: 9.1mm
• Video Refresh Rate: 9 Hz

System

• Analog Video Output: No
• ClearCruise AR Analytics: Yes, with Raymarine Axiom and AR200 module
• Current: Peak 5.0 A
• Firefighter Mode: No
• Gyro Stabilized: No
• HD-SDI Lossless Video Output: No
• Network Video Output: Single H.264 Network Video Stream
• ONVIF Conformance: No
• Operating Voltage Range: -10% to +30% of Nominal Supply Range
• Pan-Tilt Adjustment Range: Pan: 360° (continuous), Tilt: +110°, -90°
• Power Consumption: 15 W (typical) 18 W (max)

Environmental

• Automatic Window Defrost: Standard at Power-Up
• EMI: IEC60945
• Lightning Protection: Near Strike at 2kV
• Operating Temperature Range: -25°C to +55°C
• Salt Mist: IEC60945
• Shock: 15 g vertical, 9 g horizontal
• Storage Temperature Range: -30°C to +70°C
• Vibration: IEC 60945; MIL-STD-810E
• Water Ingress: IPX 6
• Wind: 100 mph (161 kph)

Physical

• Size: Without top-down riser; Diameter 6.3” (161.1mm), Height 9.0” (229.3mm) With top-down riser; Diameter 7.5” (190.0mm), Height 11.0” (279.0mm)
• Weight: 6.0 lb (2.7 kg) w/o top-down riser 6.6 lb (3.0 kg) w/ top-down riser

Range Performance

• Detect a 30-foot Vessel: 1.0nm (1850m)
• Detect Human Sized Target: 0.3nm (560m)
•  NATO Target 2.3m x 2.3m at 50 Pct.: 0.7nm (1285m)

## Specifications##

## In the Box##

What's in the box?

1. Thermal camera
2. Thermal camera base-seal
3. Fixings: 3x M6 dome nuts, 3x M6 threaded studs, 3x M6 spring washers, 3x M6 nyloc nuts, and 2x M6 flat washers
4. Self-adhesive decals (for ball-down mounting only)
5. RayNet-to-RJ45 adapter cable (100 mm)
6. Right-angled RayNet-to-RayNet cable (10 m)
7. Right-angled 3-pin power cable (10 m)
8. Top-down riser kit (includes riser, riser base seal, and riser mounting template)
9. Documentation
