Description

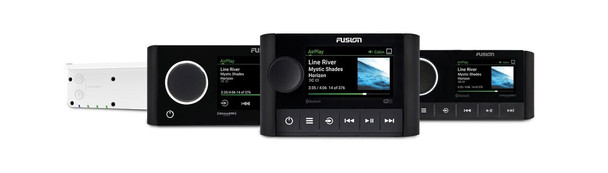

Fusion Apollo Marine Zone Stereo MS-SRX400
Welcome to a new era of marine audio entertainment, crafted and engineered by Apollo – the God of Music.
A perfect companion to Apollo RA770, the Apollo SRX400 zone stereo combines premium design and superior sound in a compact form factor.
- Custom audio profiles for each zone on your boat to deliver superior quality audio.
- Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate.
- Experience seamless high-quality audio streaming from your music app via the AirPlay 2 software feature1.
- Enjoy the freedom of musical choice with Fusion’s PartyBus-Network technology1.
- Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the Apollo SRX400 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration and UV.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion® Audio app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi technology, including the convenience of AirPlay 2 from Apple® and universal plug-and-play (UPnP)1.
Designed with Wi-Fi onboard, the Apollo RA770 and its perfect companion SRX400 can be connected without running any wires – reducing installation time, cost and complexity.
Updates are now available from your compatible smartphone or device, via the free Fusion® Audio app. The Apollo Series is intelligently simple and easy to keep up to date.
##Features##
Features
- Compact gear for space-limited helms
- One powered zone keeps setup tidy
- Wi-Fi AirPlay 2 and Bluetooth streaming
- IPX6 and IPX7 rated for spray
- Class-D amp punches out 140W peak
- Easy expansion with RCA and sub outs
##Features##
##Specifications##
Specifications
- Model: SRX400 Apollo zone stereo head unit
- Physical dimensions (H x W x D): 70 x 110 x 122 mm
- Weight: 340 g
- Water rating: IPX6 and IPX7 (front panel only when properly installed)
- Power input: 10.8–16 VDC
- Operating temperature range: 0° to 50° C
- Max current draw: 8 A
- Bluetooth wireless range: up to 10 m
- Wireless protocols: Wi‑Fi 2.4 GHz @ +15 dBm nominal; Bluetooth 2.4 GHz @ +10 dBm nominal
- Compass‑safe distance: 100 mm
- Display: 2.7-inch optically bonded colour LCD
- Built-in amplifier type: Class‑D (2 Ohm stereo-stable)
- Peak power: 140 W
- Rated power output (2 Ohm): 43 W RMS x 2 @ 14.4 V input < 10% THD
- Rated power output (4 Ohm): 26 W RMS x 2 @ 14.4 V input < 10% THD
- Digital Signal Processing: built-in with preconfigured DSP profiles
- PartyBus-Network capability: yes (wired or wireless)
- Fusion-Link control: yes via compatible MFD or smartphone
- Audio zones: 1 amplified zone
- Connectivity: 1 x Ethernet port; 1 x Motorola AM/FM antenna connector; 2 x speaker connections (1 zone amplified)
- Pre-outs: 1 x RCA pre-out (left right and subwoofer) 1 zone
- Line out: 1 x L + R per zone (requires external amplification)
- Subwoofer out: 1 x mono output (requires external amplification)
- Audio sources: AM FM Bluetooth Apple AirPlay 2 and UPnP
- Software updates: over-the-air via Fusion-Link app
- Multi-language interface: multiple European and Asian languages including English
- Front panel certification: tested against salt fog temperature vibration and UV exposure
- Warranty: 3 years
##Specifications##
##In the Box##
In the Box
- Mounting gasket
- Mounting template
- Four 8-gauge self-tapping screws
- Two screw covers
- Power speaker line-out and subwoofer-out wiring harness
- Documentation
