Description

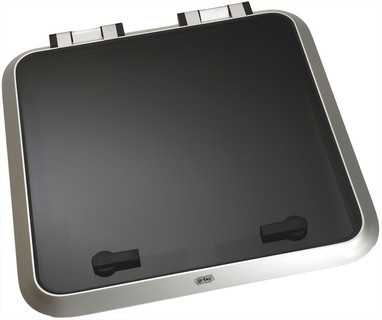

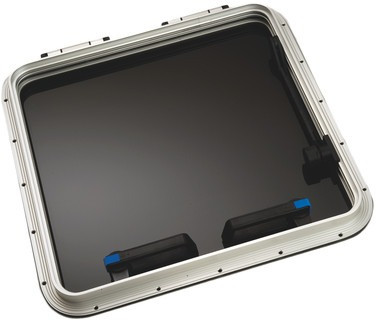

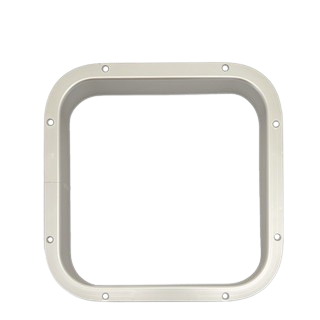

GEBO Standard Range Deck Hatches - Inner Rim Aluminium NFH
Inner dress rim available in most sizes in either ABS or aluminium
| Part Number | GEBO Part Number Hatch |
Cut-Out size L x W mm |
Radius mm |
Overall size L x W mm |
Radius mm |
Acrylic mm |
Mosquito Screen |
Inner Rim Aluminium |
Fly-Blind Combo |
| RWB6020 | 80.20.10.00 | 200 x 200 | 30 | 260 x 260 | 60 | 10 | RWB6130 | RWB6205 | |
| RWB6022 | 80.20.20.00 | 325 x 185 | 30 | 385 x 245 | 60 | 10 | RWB6132 | RWB6207 | |
| RWB6023 | 80.20.90.00 | 341 x 196 | 30 | 401 x 256 | 60 | 10 | RWB6133 | RWB6208 | |
| RWB6024 | 80.21.00.00 | 410 x 410 | 30 | 470 x 470 | 60 | 10 | RWB6134 | RWB6209 | |
| RWB6025 | 80.20.30.00 | 450 x 320 | 30 | 510 x 380 | 60 | 10 | RWB6135 | RWB6210 | RWB6100 |
| RWB6027 | 80.20.40.00 | 500 x 370 | 30 | 560 x 430 | 60 | 10 | RWB6137 | RWB6211 | RWB6101 |
| RWB6028 | 80.20.50.00 | 500 x 500 | 30 | 560 x 560 | 60 | 10 | RWB6138 | RWB6212 | RWB6102 |
| RWB6032 | 80.80.50.00 | 500 x 500 | 30 | 560 x 560 | 60 | 10 | RWB6212 | ||
| RWB6029 | 80.20.60.00 | 620 x 620 | 30 | 680 x 680 | 60 | 10 | RWB6139 | RWB6213 | RWB6103 |
