Description

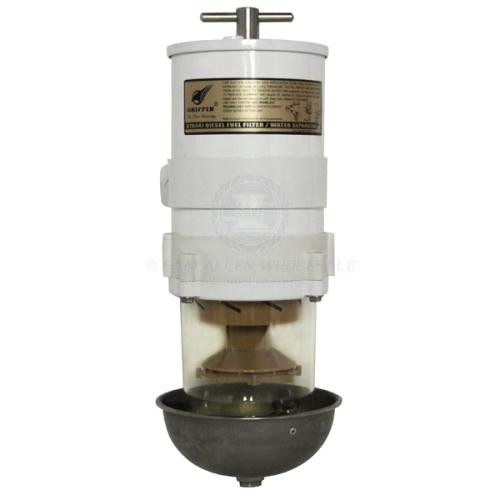

Griffin Diesel Filter Kit GTB341 Clear Bowl & Heat Deflector Shield
• Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 900MA.
• MICROBLOC Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size with that element. Elements are also available in 10 and 30 micron sizes.
• Supplied as standard with a 10 micron GRIFFIN MICROBLOC element.
* Hose fittings are not included.
## Specifications##
| Specifications Chart |
|
| Part No. | 374120-SAM |
| Port Size | 7/8-14 inch UNF |
| Flow Rate | 341LPH (90GPH) |
| Service Clearance | 127mm |
| Dimensions | H 412 x W 145mm x D 160mm |
| Temperature | -20°C / +121°C |
| Clean Pressure Drop | 2.4kPa |
| Max. Operating Pressure | 103kPa |
| Unit Qty | 1 |
