Description

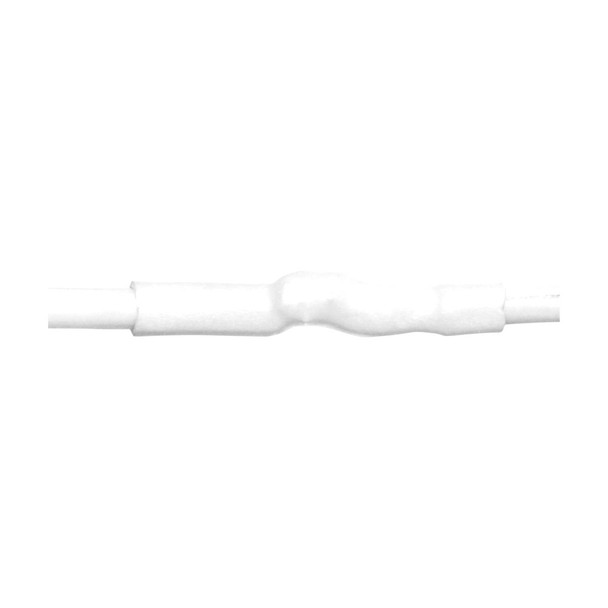

Heat Shrink - White
This flexible heat shrink tubing is primarily designed for use in electrical installation but also used to prevent fraying on ropes etc. Shrink temperature is 90ºC and the shrink ratio is 21. Tubing is sized by the tubing diameter, not lay flat dimension.
| Part Number |
Colour
|
Supplied Flat mm
|
Dia. Mm
|
Recovered Wall Thick mm
|
Length m
|
|---|---|---|---|---|---|
| 115070-BLA | Red | - | 1.6 | 0.43 | 1.2 |
| 115071-BLA | Black | - | 1.6 | 0.43 | 1.2 |
| 115072-BLA | Red | - | 2.5 | 0.44 | 1.2 |
| 115073-BLA | Black | - | 2.5 | 0.44 | 1.2 |
| 115074-BLA | Red | - | 3.5 | 0.44 | 1.2 |
| 115075-BLA | Black | - | 3.5 | 0.44 | 1.2 |
| 115076-BLA | Red | 8 | 5.4 | 0.56 | 1.2 |
| 115077-BLA | Black | 8 | 5.4 | 0.56 | 1.2 |
| 115078-BLA | Red | 11 | 6.4 | 0.56 | 1.2 |
| 115079-BLA | Black | 11 | 6.4 | 0.56 | 1.2 |
| 115080-BLA | White | 11 | 6.4 | 0.56 | 1.2 |
| 115081-BLA | Red | 16 | 10.4 | 0.56 | 1.2 |
| 115082-BLA | Black | 16 | 10.4 | 0.56 | 1.2 |
| 115083-BLA | White | 16 | 10.4 | 0.56 | 1.2 |
| 115084-BLA | Red | 20 | 13.5 | 0.69 | 1.2 |
| 115085-BLA | Black | 20 | 13.5 | 0.69 | 1.2 |
| 115086-BLA | White | 20 | 13.5 | 0.69 | 1.2 |
| 115087-BLA | Red | 31 | 21.2 | 0.77 | 1.2 |
| 115088-BLA | Black | 31 | 21.2 | 0.77 | 1.2 |
| 115089-BLA | White | 31 | 21.2 | 0.77 | 1.2 |
| 115090-BLA | Red | 39 | 26.1 | 0.87 | 1.2 |
| 115091-BLA | Black | 39 | 26.1 | 0.87 | 1.2 |
| 115092-BLA | White | 39 | 26.1 | 0.87 | 1.2 |
