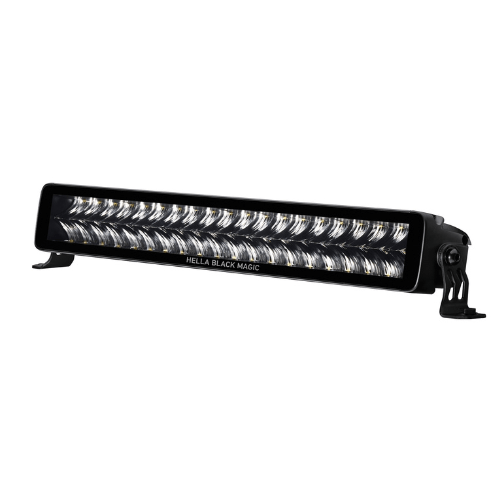

Hella Black Magic LED 20" Slim Double Driving Light Bar

The new HELLA Black Magic LED Series Lightbars offer driving beams with powerful light output up to 15,000 lumen, ideal for off-road situations where you need the most. They have a recognizable and attractive full blackout appearance with a slim and edgeless design. Typical applications would be installations as Hood, Bumper, Ground Bumper and Roof Lightbars. The product scored the highest dust / waterproof rating in the industry and edgeless design prevents dust deposits from settling along the edges.

The extra long 2 meter cable allows easy mounting on your vehicle. The new Black Magic LED Series Lightbars have an integrated thermal sensor that adapts to the ambient temperature, which not only prevents overheating or LED failure, but also increases light output when the ambient temperature is low. This new feature now provides the driver with optimum lighting for all off-road conditions. In this way the user is given the optimum light under all conditions.

Features:

• LED high-beam double lightbar
• Full blackout appearance including black brackets
• Sleek design eliminates dust and dirt from being lodged in edges
• Temperature Control System
• Intense light output

## Specifications##

Specifications:

• 40 High intensity LEDs

Light function:

• Spot (Off-road only)
• Die-cast aluminum housing
• Aluminum, black stainless steel mounting bracket

Measured lumen:

• 11000 lm
• Multivolt 10-30V DC

Current consumption:

• 6.7-14.6 A (12V) / 3.5-7.2 A (24 V)

Connection:

• 6.5 ft (2,000 mm) cable with open ends
• 200 W

Protection class:

• IP 68, IP 69K

EMC protection:

• ECE-R10

Colour temperature:

• 5700 Kelvin

Technology:
LED Mounting:

• Upright / Pendant Single Lamp

Includes:

• (1) LED Light Bar with mounting hardware
  Mounting Instructions
