Description

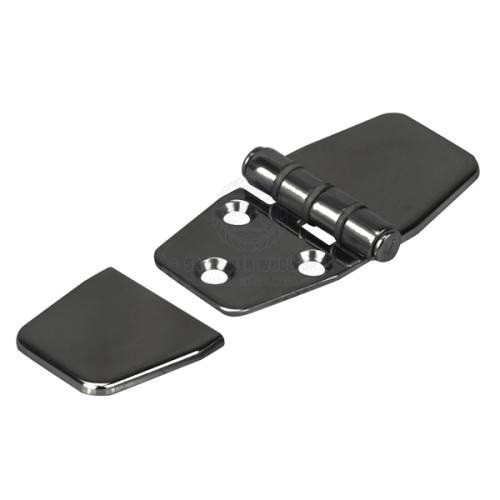

Hinges - Strap - Stamped - Anti-Slam - Pvd Stainless Steel - Covered
• Hinge is designed with nylon pivot friction inserts to prevent the lid from slamming shut, making it ideal for light-duty applications on cabinets, hatches, and access panels.
• Stamped 316G stainless steel.
• Black PVD finish.
• 4mm leaf thickness with cover.
• Cover held in place with permanent 3M adhesive and easily removed with heat gun.
## Specifications##
| Specifications Chart |
|||
| Part No. | 296956-SAM | 296957-SAM | 296958-SAM |
| Length | 40mm | 40mm | 40mm |
| Width | 38mm | 58mm | 76mm |
| Type | Strap Stamped/Incl Cover | Strap Stamped/Incl Cover | Strap Stamped/Incl Cover |
| Split | 19mm / 19mm | 39mm / 19mm | 38mm / 38mm |
| Leaf Thickness | 1.8mm | 1.8mm | 1.8mm |
| Barrel Height | 9mm | 9mm | 9mm |
| No. Mount Holes | 4 | 5 | 6 |
| Mount Screws | 5mm c/s | 5mm c/s | 5mm c/s |
| Unit Qty | Pair | Pair | Pair |
| Sold in pairs. | |||
