Description

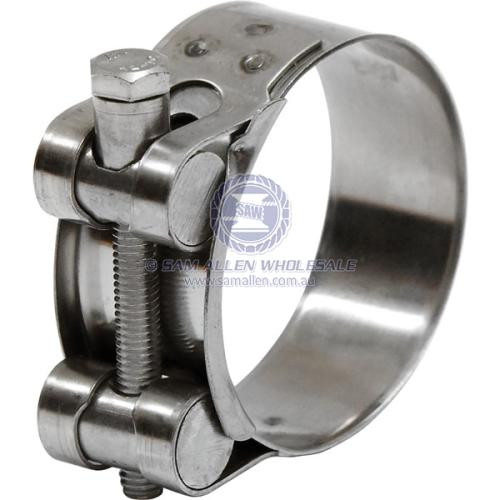

Hose Clamps – T-Bolt – Stainless Steel
These Stainless Steel T-Bolt Hose Clamps are designed for heavy duty applications where large tightening forces are required. Featuring rolled edges to protect hoses and solid trunnions with a hex head bolt, they deliver superior strength and durability. Made from high-grade stainless steel, they are suitable for demanding marine, industrial, and automotive environments.
## Features##
Features
- For heavy duty applications requiring large tightening forces
- Rolled edge prevents hose damage
- Solid trunnions with hex head bolt for secure fastening
- Band: 304 Stainless Steel
- Bridge: 304 Stainless Steel
- Bolt: High tensile 316 Stainless Steel
- Trunnion: 300 Series Stainless
- Collar: 300 Series Stainless
## Features##
## Specifications##
Specifications
| Part No. | Description | Size | Band Width |
|---|---|---|---|
| 764085 | Hose clamp SS T bolt 18 - 20mm each | 18mm - 20mm | 20mm |
| 764086 | Hose clamp SS T bolt 20 - 22mm each | 20mm - 22mm | 16mm |
| 764086A | Hose clamp SS T bolt 24 - 26mm each | 24mm - 26mm | 16mm |
| 764086B | Hose clamp SS T bolt 26 - 28mm each | 26mm - 28mm | 16mm |
| 764087 | Hose clamp SS T bolt 29 - 31mm each | 29mm - 31mm | 20mm |
| 764088 | Hose clamp SS T bolt 30 - 33mm each | 30mm - 33mm | 20mm |
| 764088A | Hose clamp SS T bolt 32 - 35mm each | 32mm - 35mm | 20mm |
| 764089 | Hose clamp SS T bolt 36 - 39mm each | 36mm - 39mm | 20mm |
| 764090 | Hose clamp SS T bolt 40 - 43mm each | 40mm - 43mm | 20mm |
| 764091 | Hose clamp SS T bolt 44 - 47mm each | 44mm - 47mm | 20mm |
| 764092 | Hose clamp SS T bolt 48 - 51mm each | 48mm - 51mm | 20mm |
| 764094 | Hose clamp SS T bolt 52 - 55mm each | 52mm - 55mm | 20mm |
| 764096 | Hose clamp SS T bolt 56 - 59mm each | 56mm - 59mm | 20mm |
| 764098 | Hose clamp SS T bolt 60 - 63mm each | 60mm - 63mm | 20mm |
| 764100 | Hose clamp SS T bolt 64 - 67mm each | 64mm - 67mm | 24mm |
| 764102 | Hose clamp SS T bolt 68 - 73mm each | 68mm - 73mm | 24mm |
| 764104 | Hose clamp SS T bolt 74 - 79mm each | 74mm - 79mm | 24mm |
| 764106 | Hose clamp SS T bolt 80 - 85mm each | 80mm - 85mm | 24mm |
| 764108 | Hose clamp SS T bolt 86 - 91mm each | 86mm - 91mm | 24mm |
| 764110 | Hose clamp SS T bolt 92 - 97mm each | 92mm - 97mm | 24mm |
| 764112 | Hose clamp SS T bolt 98 - 103mm each | 98mm - 103mm | 24mm |
| 764114 | Hose clamp SS T bolt 104 - 112mm each | 104mm - 112mm | 24mm |
| 764116 | Hose clamp SS T bolt 113 - 121mm each | 113mm - 121mm | 24mm |
| 764118 | Hose clamp SS T bolt 122 - 130mm each | 122mm - 130mm | 24mm |
| 764120 | Hose clamp SS T bolt 131 - 139mm each | 131mm - 139mm | 26mm |
