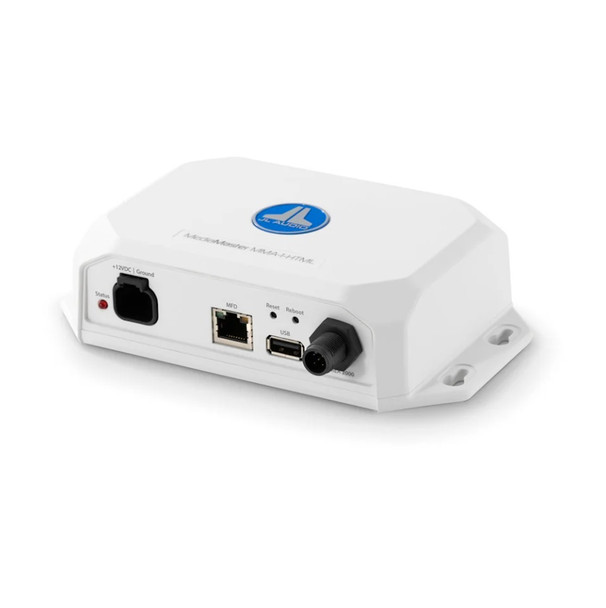

JL Audio MFD Data Interface for MediaMaster Source Unit

Enhance your marine audio system with the JL Audio MMA-1-HTML MFD Data Interface. Designed for seamless integration with JL Audio's MediaMaster® source units, this NMEA 2000® certified interface projects familiar MediaMaster® controls onto your vessel's compatible Multi-Function Display (MFD), offering intuitive and centralized audio management.

The JL Audio MFD Data Interface for MediaMaster source units is interface engineered to generate MediaMaster source unit themed UI navigation and controls directly onto your vessel's compatible Multi-function Display (MFD). Exclusively designed for use with compatible MediaMaster source units, the MFD Data Interface allows you to pilot your boat and control your MediaMaster source unit seamlessly, via your helm's MFD display.

Outfitted with a NMEA 2000® network Micro-C connector (LEN 1), the MFD Data Interface interacts with a vessel's NMEA 2000 network using applicable cables and connectors for the NMEA 2000 network (not included). The MFD Data Interface automatically recognises the host MediaMaster source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster source unit user experience.

## Features##

Features

• Seamless MFD Integration: Projects MediaMaster®-themed user interface and controls directly onto compatible MFDs, including models from Garmin, Simrad, Lowrance, and B&G
• Automatic Source Unit Recognition: Automatically detects connected MediaMaster® source units (MM105, MM105-HR, MM55, MM55-HR) for immediate synchronization.
• NMEA 2000® Certified: Ensures reliable communication and compatibility within your vessel's NMEA 2000® network.
• Compact and Durable Design: Features a robust enclosure measuring 6.77" x 3.98" x 1.73", suitable for marine environments.
• Flexible Power Options: Operates within a voltage range of 10V – 15.9V DC, accommodating various marine power systems.

## Features##

## Specifications##

Specifications

• Model: MMA-1-HTML
• Operating Voltage: 14.4V DC (10V – 15.9V)
• Operating Temperature Range: -4°F to +149°F (-20°C to +65°C)
• Current Draw / Fuse Value: 150 mA (max) / 1 A
• NMEA 2000 Interface: LEN 1 (Micro-C connector)
• Compatible MFDs: Garmin, Simrad, Lowrance, B&G
• Compatible MediaMaster Units: MM105, MM105-HR, MM55, MM55-HR
• Dimensions: 6.77" (W) x 3.98" (H) x 1.73" (D)
• Weight: Approximately 2.00 lbs
• Warranty: 2-Year Manufacturer's Warranty

## Specifications##
