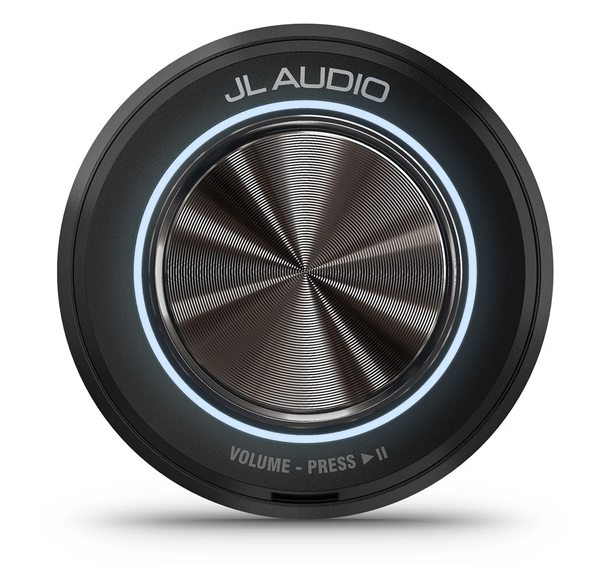

JL Audio R5 Single Head Unit Volume Controller
Take control of your audio out on the water with the JL Audio R5 single head unit volume controller. This easy-to-use device connects to your boat’s NMEA 2000® network and is IPX7-rated for harsh marine environments. Its large single-knob control adjusts all audio zones of a single head unit and can play or pause audio with the push of a button. Plus, it can be easily front mounted on your dash.
Features
PLUG AND PLAY - Wired volume controller with connectivity to your boat’s NMEA 2000 network.
ERGONOMIC DESIGN - Large rotary design for easy adjustments, especially while in motion.
SIMULTANEOUS CONTROL - One knob simultaneously adjusts all audio zones of a single head unit.
PUSH PLAY/PAUSE - Simple push-button for audio play/pause control.
MARINISED DESIGN - IPX7-rated for high levels of protection in harsh marine environments.
EASY INSTALLATION - Front-mounted design requires just a single 1.5" (38 mm) hole for installation.
## In The Box##
In The Box
JL Audio R5 single head unit volume controller, T-connector, mounting screws and documentation
## In The Box##
## Specifications##
General |
|
| Warranty | 1 Year |
|---|---|
| Physical dimensions (Height) | 60 mm (2.35″) |
| Physical dimensions (Width) | 60 mm (2.35″) |
| Physical dimensions (Depth) | 52 mm (2.04″) |
| Control Surface Dust/Water Rating (when properly installed) | IPX7 |
| Operating temperature range | 0° C to 50° C (32° F to 122° F) |
| Current draw (max) | 110 mA |
Electrical features |
|
| POWER INPUT | 10.8-16 VDC |
|---|---|
| Compass safe distance | 100 mm (3.94″) |
Networking & Connections |
|
| NMEA 2000® ports | 1 (Micro-C connector) |
|---|---|
| NMEA 2000® LEN | 2 (100 mA) |
