KUS Tank Senders - 1 - 1/4 Inch BSP Senders 240-30 Ohms

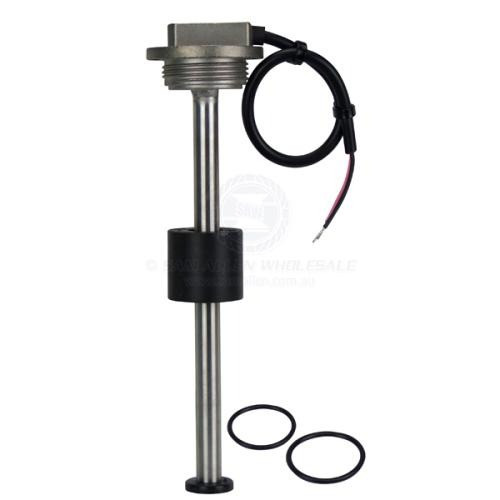

The S3 1-1/4" BSP Sender 1000mm 240–33 is designed for reliable tank level measurement in marine and industrial applications. Constructed from 316G stainless steel, it provides long service life, resistance to vibration, and precise output readings.

Special sizes available to order. Length is measured from underside of the flange to the base of the shaft.

##features##

Features

• Magnetic field technology controls reed on-off switch for enhanced durability.
• 316G stainless steel main body for excellent corrosion resistance.
• 1-1/4 inch BSP twist-on thread assembly for secure installation.
• Output signal range: 240–33 Ohms.
• Operating temperature: -40°C to +85°C.
• IP67 protection rating for water and dust resistance.
• 250mm tinned wire with PVC cover for dependable connections.
• Includes mounting O-rings (38mm x 2.6mm and 43mm x 3.5mm).
• 33mm float diameter ensures accurate level measurement.

##features##

##specifications##

Specifications

##specifications##
