Description

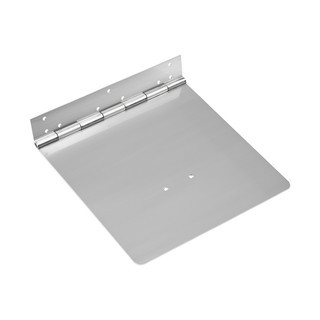

LectroTab Trim Tab Plates Stainless Steel 9"
- Stainless Steel Trim Tab Plate Assembly
- 9 x 9"
- 9 x 12"
- 9 x 18"
- 9 x 24"
- 12 Gauge 304 Grade Stainless Steel
- Chord Length:9”
- Tab Width:9” 12” 18” 24”
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. The tabs are made of corrosion resistant 12 gauge, 304 stainless steel. The first number in the size is the chord length of the tab (hinge to trailing edge), the second number is the width.
Please Note: Trim tab plates are sold per plate, if you need a pair please order 2.
## Lectrotab Plates##
| Code | Description | Chord Length | Tab Width |
|---|---|---|---|
| 624100-MIL | 9 × 9 Stainless Steel Trim Tab Plate Assembly | 9" | 9" |
| 624101-MIL | 9 × 12 Stainless Steel Trim Tab Plate Assembly | 9" | 12" |
| 624102-MIL | 9 × 18 Stainless Steel Trim Tab Plate Assembly | 9" | 18" |
| 624103-MIL | 9 × 24 Stainless Steel Trim Tab Plate Assembly | 9" | 24" |
| 624110-MIL | 12 × 9 Stainless Steel Trim Tab Plate Assembly | 12" | 9" |
| 624111-MIL | 12 × 12 Stainless Steel Trim Tab Plate Assembly | 12" | 12" |
| 624112-MIL | 12 × 18 Stainless Steel Trim Tab Plate Assembly | 12" | 18" |
| 624113-MIL | 12 × 24 Stainless Steel Trim Tab Plate Assembly | 12" | 24" |
| 624114-MIL | 12 × 30 Stainless Steel Trim Tab Plate Assembly | 12" | 30" |
## Lectrotab Plates##
