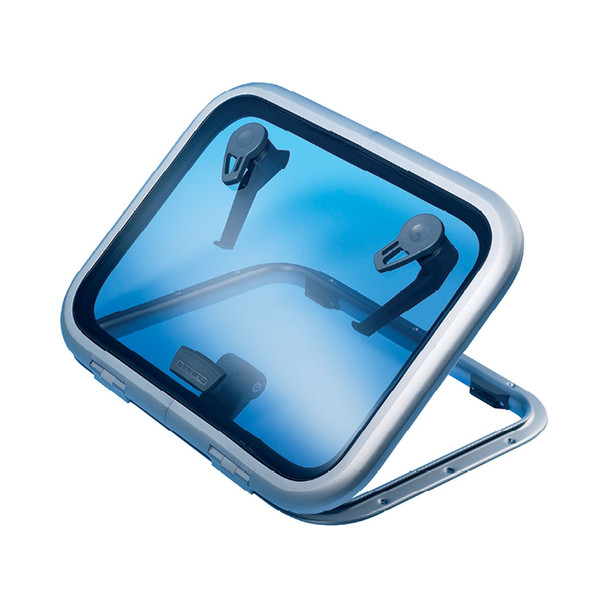

Lewmar Medium Profile Hatch Size 70 Silver Stayed
Manufactured to exacting standards, the Lewmar® Medium Profile range provides a smooth profile with modern lines, similar to the Low Profile range. The hatch has been designed with deeper frame sections for greater strength and thicker acrylic for durability. The Medium Profile hatches include Lewmar’s unique sealing system which allows for easy acrylic replacement if ever required. Ideal as a foredeck hatch on larger cruisers and offshore yachts.
Features
• Outside handles
• Ability to lock the hatch fully closed or in the vented position
• Ability to quickly and easily replace acrylic lens
• Friction hinges hold the lid open in any position up to 95° (optional extra not included as standard)
• Anodised aluminium frame for corrosion resistance
• Curved upper frame for strength as well as modern styling
• CE approved to Area 2A
Accessories
172196 Large Handle Kit Size 30+
SP17170292 Hinge Kit (Friction)
SP17170268 Friction Lever
SP17170280 Joining Insert
SP17170296 Hinge Caps x10
SP17170266 Large Gasket Friction Lever
To order replacement Acrylic with Seal, please contact BLA on 1300 252 725 with the following information
• Hatch overall size W x L x H
• Serial Number embossed in the acrylic
• Friction Lever or Telescopic Stay type
N.B. Insect screens can only be used with trim kits. Trims also available in Ivory
|
Part Number
|
Size
|
Outside XxY LxW mm
|
Cut Out X1xY1 LxW mm
|
Radii R mm
|
Radii R1 mm
|
Height Z mm
|
Acrylic mm
|
Internal Trim Kit & Insect Screen
|
Internal Trim Kit Colour
|
Insect Screen Only to Suit
|
|---|---|---|---|---|---|---|---|---|---|---|
| 170108-BLA | 70 | 698 x 698 | 627 x 627 | 78 | 42.5 | 32 | 12 | 170232 | White | 170268 |
