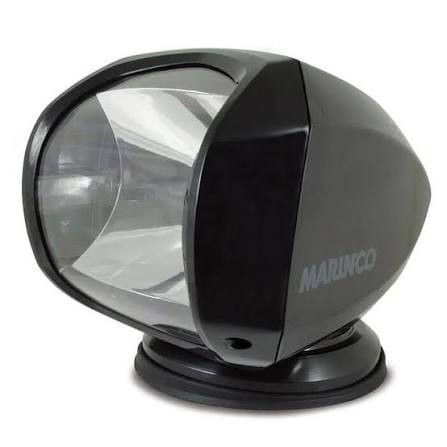

Marinco Wireless Spotlight With Remote 12/24V DC 100W

Precision spotlight provides light where you need it with a universal 12/24 volt circuit with an ultra bright 100W, H3 halogen bulb and Lexan lens.

Included is a wireless remote with a range of 200 feet and glow-in-the-dark buttons.

Designed for harsh marine environment with double o-ring, sealed housing and tested for moisture salt shock and vibration.

Super quiet motor with limit stops provides a full range of coverage with a 370° sweep and 120° tilt (75° up and 45° down).

Features:

• One touch auto sweep and SOS function
• Snap-in mounting system allows you to mount upside down
• Peak beam distance of 917 ft
• Universal 12V or 24V operation (both 12V/24V H-3 bulbs are included)
• Wireless control bridge mount control included
• 7.5"Wx7.5"Hx9.25"D
• 5 Year limited warranty

## Specifications##

Specifications

• Bulb: 100 Watt, H3 Halogen
• Power (Input voltage): 12V or 24V
• Current draw (idle/in use): 0.03 amps / 7.0 amps
• Peak Beam Intensity: 210,000 candella
• Peak Beam Distance: 917 ft (280 m)
• Lux @ 66' (20 m): 525 Lux
• Coverage at 66' (25 m): 132 sq ft12 sq m
• Rotation: 370° (built in limit stops)
• Tilt: 120° Tilt (75° up & 45° down)
• Wireless range: 200 ft (65 m)
• Dimensions: 7.5"W x 7.5"H x 9.25"D(19cm x19cm x 23.5cm)
• Weight: 3.30 lbs (1.5 kg)
• Housing material: UV resistant PC/ASA
• Lens material: UV resistant PC
• operating temp range: -15°C–45°C (5°F–113°F)
• IP Rating: IP56

SPLR-2 Wireless Bridge Remote Specifications (included)

• Remote Specification: Wireless Bridge Remote
• Power: 12 or 24 volt (hard wired)
• Current draw (idle / in use): negligible
• Wireless range: 200 ft (65m)
• Dimensions: 3.5"Wx2.25"Hx.75"D88x57x19 mm
• Weight: 2.12 oz (60g)
• Housing material: UV resistant PC/ASA
• Button material: Silicone (glow in the dark)
• Operating temp range: 5°F–113°F (-15°C–45°C)
• IP Rating: IP54
