Description

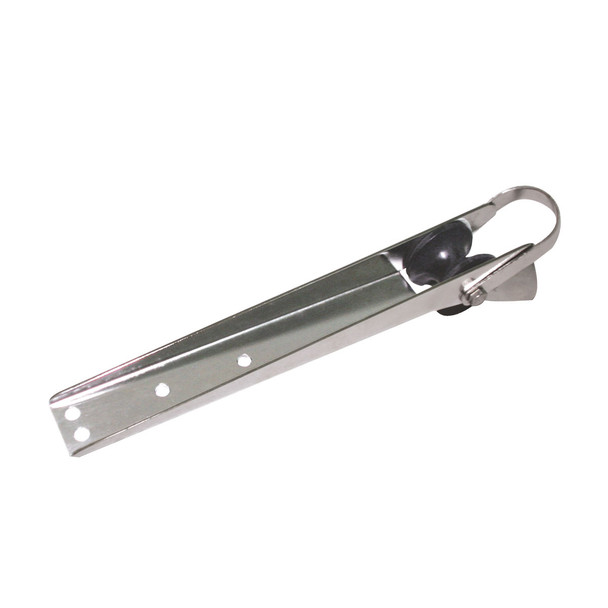

Marine Town Captured Anchor Rollers - Stainless Steel
Heavy duty pressed 316 grade stainless steel construction, electro-polished finish. Non-corrosive large diameter black delrin roller. Saddle strap to retain anchor and warp.
| Part Number |
Overall Length mm
|
Width mm
|
Height mm
|
Roller Width mm
|
Mount Screws mm
|
|---|---|---|---|---|---|
| 192100-BLA | 390 | 85 | 50 | 45 | 10 r/h |
| 192102-BLA | 458 | 130 | 80 | 77 | 10 r/h |
| 192104-BLA | 505 | 100 | 70 | 60 | 10 r/h |
| 192106-BLA | 589 | 135 | 50 | 86 | 10 r/h |
