Description

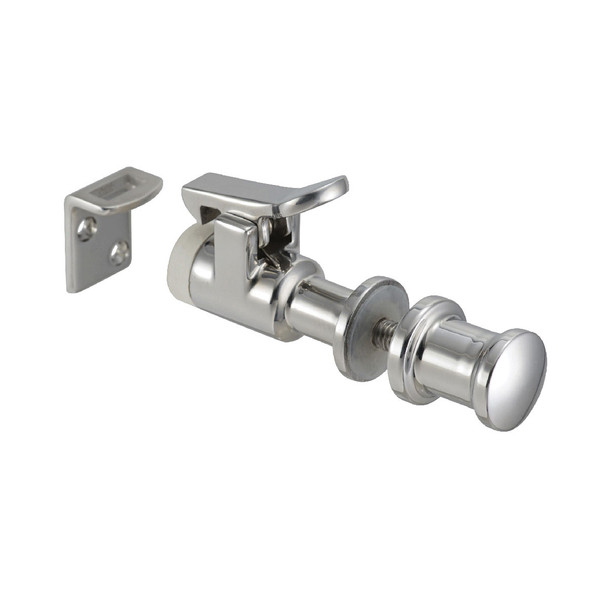

Marine Town Self Latching Catch Cast Stainless Steel
Self latching door catch to hold door in open position. Mounts neatly through glass doors with an external handle. Features a rubber bumper stop to protect door. Cast 316 grade stainless steel construction.
• Heavy duty cast construction with strong holding power
• Designed to fit various applications for a tight seal on any compartment lid
• Off-centre strike can be rotated to achieve desired catch tension
• 316 Grade stainless steel mechanism presents smooth, low profile appearance in the closed position
|
Part Number
|
Stand off inc Tab mm
|
Base Dia. mm
|
Tab base mm
|
Tab Height mm
|
Max Door Thickness mm
|
Tab Mount Screws mm
|
|---|---|---|---|---|---|---|
| 193287-BLA | 54 | 27 | 24 x 30 | 17 | 22 | 4 c/s |
