Description

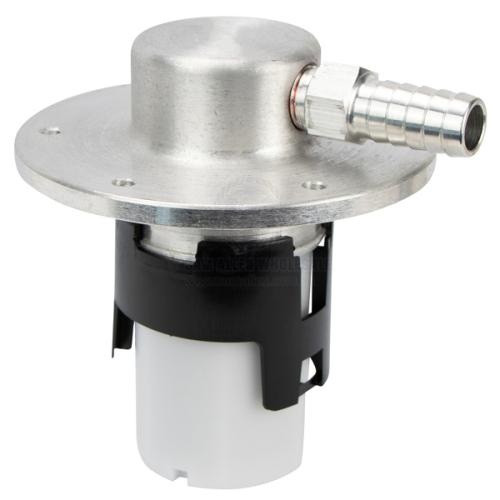

Perko Fill Limit Valve - Canister
• Used to establish ullage (expansion airspace) in the fuel tank and prevent overfilling.
• Manufactured from corrosion resistant aluminium with polymer valve.
• Flange mounted, designed for use on aluminium or polymer surfaces.
• Mounting gasket is not included.
• Suitable to push refuelling vapours through a carbon canister via the 16mm (5/8 inch) hose barb tail.
## Specifications##
| Specifications Chart | |||
| Part No. | 296834-SAM | 296836-SAM | 296838-SAM |
| Overall Height | 115mm | 124mm | 133mm |
| Flange Dia. | 115mm | 115mm | 115mm |
| Projection above Tank | 35mm | 35mm | 35mm |
| Ullage Depth | 19mm | 29mm | 38mm |
| Bolt Pattern Dia. | 95mm | 95mm | 95mm |
| Cutout Dia. | 63.5mm | 63.5mm | 63.5mm |
| Mounting Hole Dia. | 5mm | 5mm | 5mm |
