Description

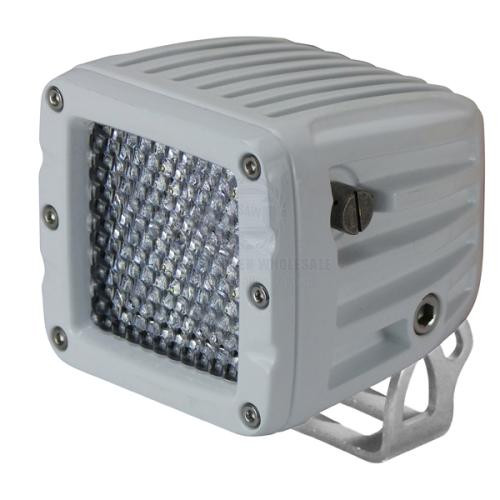

Relaxn LED - Flood/Awning Lights - Mako Series
Features
• Powder coated die-cast aluminium housing.
• Low current draw: 709346/709348 - 1.2A at 12V
709350 - 1.8A at 12V
• Pre-wired with 450mm cable tail.
• Remote switched, requires 3 way switch (Not included).
• 45° flood type beam.
• Dual Colour: 709348/709350 - White/Amber to help deter insects
709346 - White/Red to help with night vision
• Over voltage and overheating protection.
• Foam gasket.
• IP67 ingress rated.
• Can be mounted vertical or ceiling mounted.
• Stainless steel M6 x 25mm hex socket with Nyloc nuts included.
• ROHS and CE certified.
## Specifications##
Specifications Chart |
||
Part No. | 709346-SAM | 709348-SAM |
Length | 231mm | 231mm |
Width | 55mm | 55mm |
Height | 46mm | 46mm |
Volts | 9V-32V | 9V-32V |
Lumens | 1600lm | 1600lm |
Watts | 20W | 20W |
Current Draw | 1.2 A | 1.2 A |
Frame Colour | Black | White |
Angle | 45 Degree | 45 Degree |
LED Colour | White / Amber | White / Red |
Unit Qty | 1 | 1 |
## Specifications##
