Description

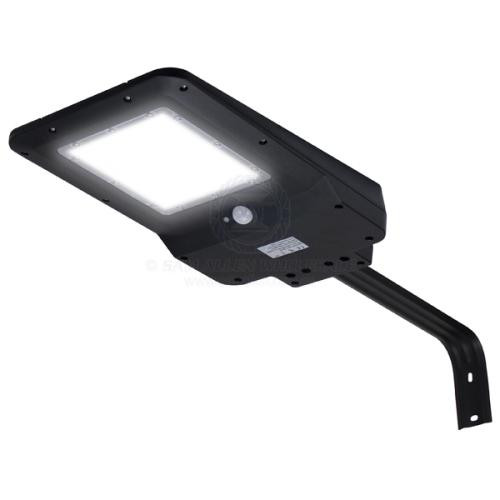

Relaxn LED - Smart Sensor & Solar Street Light
• Ideal for lighting pathways, streets, parking lots, bridges, houses, gardens, courtyards and areas exposed to sunlight.
• Ideal for commercial or residential use.
• 120° wide angle detection system 8-12 meters away.
• The LED street light automatically turns on when the sun goes down.
709430 Working Modes (switch button beside the sensor.):
Mode 1 - Soft light is on for the first 5 hours. Full brightness (1600lm) is activated when motion is detected and returns to soft mode after 20 seconds of no motion.
Mode 2 - After 5 hours or low battery (below 30%) Full brightness (1600lm) is activated when motion is detected and returns to soft mode after 20 seconds of no motion, the light will turn of after 5 minutes.
The light remains in sensor mode.
709432 Working Modes:
Mode A - Press the button on the lamp 1st time or on the remote, the lamp will automatically turn on at night and keep 60% brightness constantly for 4 hours, then it turns to mode B.
Mode B - Automatically turns on fully brightness when the sensor has detected motion in the 8-12m radius and then turns to 30% brightness for 20sec after motion.
• Easy to install, no wire, no running power cables, just fit and forget.
• Protection Rating: IP65.
• SMD 2835 LED's.
• Storage Temperature: -40°C ~ 85°C.
• Working Temperature: -20°C ~ 55°C.
• Mounting brackets included - wall mount or post mount.
##specifications##
| Specifications Chart |
||
| Part No. | 709430-SAM | 709432-SAM |
| LED Colour | Cool White | Cool White |
| Lumens | 1600 | 4800 |
| Watts | 15W | 40W |
| Recharge Time | 5-6 Hours | 8-10 Hours |
| Solar Panel Output | 9.5W Polycrystalline Silicon | 21W Mono-Crystalline Silicon |
| Frame Colour | Black | Black |
| Overall Dimensions (H x W x D) | 413mm x 232mm x 58mm | 706mm x 290mm x 74mm |
| Unit Qty | 1 | 1 |
##specifications##
