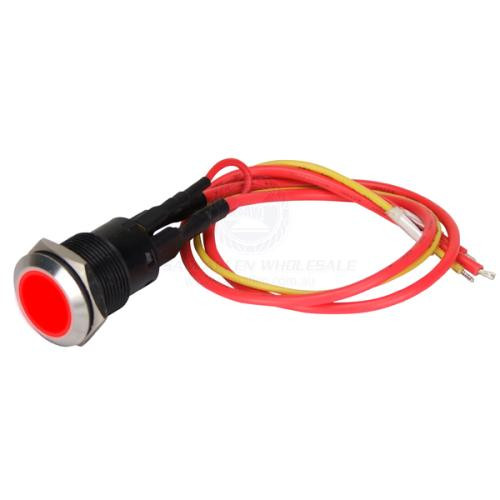

Relaxn Switch Round Red Back Light On/Off 12V 20Amp with Wire Harness
The RELAXN Round Stainless Steel Push Button Switch with red backlight offers a robust 12V, 20A solution for marine, automotive, and industrial applications. Featuring a polycarbonate face and pre-wired 500mm tinned leads, this switch combines high durability, configurable LED illumination, and IP67-rated water and dust protection for reliable performance.
##features##
Features
- Round push button switch with red LED backlight for clear visual status.
- High 20A capacity eliminates the need for external relays.
- 316G stainless steel body with polycarbonate face for durability.
- 0.250 inch quick connect terminals for easy installation.
- LED configurable as push-on illuminated or always-on mode.
- Rated for up to 20,000 cycles with reliable operation.
- Operating temperature range: -20°C to +55°C.
- IP67 rated for water and dust resistance.
- Pre-wired 500mm tinned leads included for quick setup.
##features##
## Specifications##
Specifications
| Part No. | 530725 |
| LED | Red |
| Volts | 12V |
| Switch | On/Off |
| Dimensions | Dia. 22mm x 37mm |
| Amps | 20A |
| Switch Facial Material | Polycarbonate |
| Cut Out | Dia. 19mm |
| Unit Qty | 1 |
| Note | Pre-wired 500mm tinned leads, IP67 rated, up to 20,000 cycles, configurable LED illumination, operating temp -20°C to +55°C. Market leading 20A capability without relays. |
