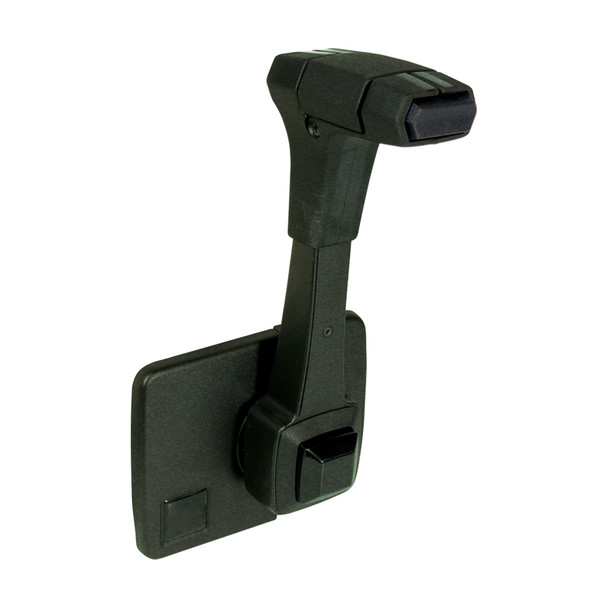

SeaStar B700SM Side Mount Single Lever Control - Power

Side mount, single lever, compact control, suitable for use with outboards, stern drives and inboards with hydraulic gear boxes.

Lever operates both shift and throttle. Mounts horizontally or vertically on port or starboard. Easy distinctive action with positive detent for shifts. Adjustable throttle friction. Push button disengagement of shift for neutral throttle warm up. Can only shift at low RPM thereby protecting gearbox.

Cables

Accepts universal 3300/33C series cables, CC230, CC330, CC332, CCX632 and CCX633.

Materials

• Die-cast zinc alloy frame
• Gold passivated steel link plates
• High impact ABS dress covers

Description
Dual Function Control
Side mount, single lever, compact control, suitable for use with outboards, stern drives and inboards with hydraulic gear boxes.

Features
• Lever operates both shift and throttle
• Mounts horizontally or vertically on port or starboard
• Easy distinctive action with positive detent for shifts
• Adjustable throttle friction
• Push button disengagement of shift for neutral throttle warm up
• Can only shift at low RPM thereby protecting gearbox
• Dual station capability (requires exchangers – refer page 1238)
• Optional neutral safety switch to ensure engine start can only occur when in neutral

Cables
Accepts universal 3300/33C series cables, CC230, CC330, CC332, CCX632 and CCX633.

Materials
• Die-cast zinc alloy frame
• Gold passivated steel link plates
• High impact ABS dress covers

Accessories
301025 Optional neutral safety switch
