Description

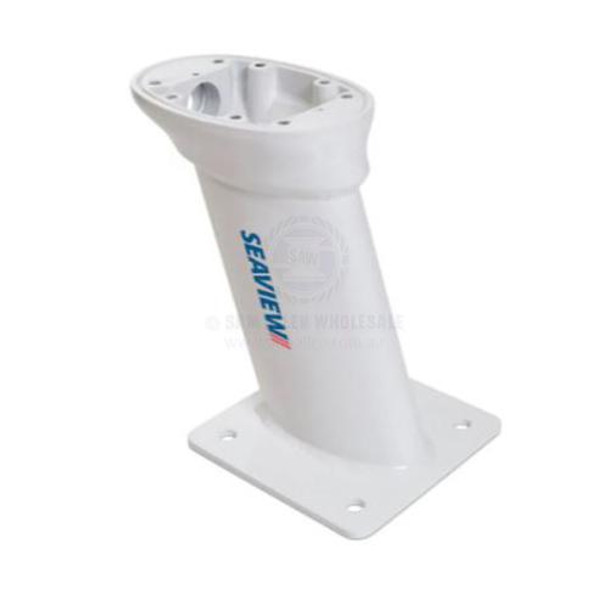

Seaview Modular Base Mounts - AFT Raked
Features
Specifically designed to minimise the amount of space required to set up a mount. The oval hollow mast section allows for easy cable management.
• Cast aluminium top, extruded aluminium mast and aluminium plate base, welded together with white powder coated finish.
• Modular design allows the user to only change the top plate when swapping to a different radar.
• Light Bar compatible.
• Includes a self-draining water proof cable seal base plate.
## Specifications##
| Specifications Chart |
||||
| Part No. | 970802-SAM | 970808-SAM | 970811-SAM | 970812-SAM |
| Model | PMA107M1 | PMA167M1 | PMA247M1 | PMA3610M1 |
| Colour | White | White | White | White |
| Base Plate | 178mm x 178mm | 178mm x 178mm | 178mm x 178mm | 254mm x 254mm |
| Mounting Plate Centre to Centre (L x W) | 127mm x 127mm | 127mm x 127mm | 127mm x 127mm | 165mm x 165mm |
| Overall Dimensions (W x H x D) | 178mm x 254mm x 294mm | 178mm x 406mm x 366mm | 178mm x 612mm x 462mm | 203mm x 920mm x 616mm |
