Ultraflex Hydraulic Helm Pumps - Front Mount

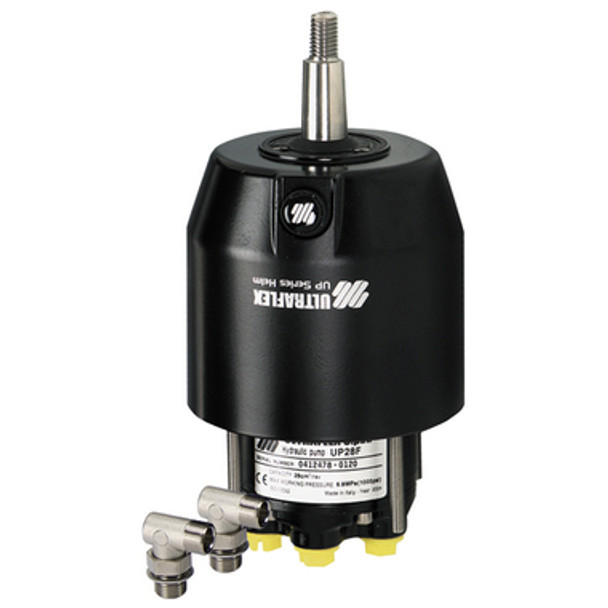

Ultraflex Hydraulic Helm Pumps – Front Mount (UP25F, UP28F, UP33F, UP39F) & Accessories
Achieve smooth and precise marine steering with Ultraflex Front Mount Hydraulic Helm Pumps, engineered for performance, reliability, and ease of use. Made in Italy, these helm pumps are ideal for small to mid-size boats with outboard, inboard, or sterndrive engines.
The UP Series (UP25F, UP28F, UP33F, UP39F) provides a range of displacement volumes to match your steering needs. All models are compatible with Ultraflex hydraulic cylinders and accessories like the X-72 tilt mechanism, X64 square flange, X57 round adaptor, and remote filler kits—allowing full customization of your helm station.
## Features##
Features
- Front mount design for easy integration at the console
- Ideal for outboard, inboard, and sterndrive hydraulic steering systems
- Precision-machined, marine-grade aluminium construction
- Multiple displacements available to match boat size and cylinder type
- Compatible with Ultraflex UC cylinders and accessory kits
- Designed for durability in harsh marine environments
- CE marked and Made in Italy
## Specifications##
Specifications
| Model | Displacement | Max Pressure | Steering Type | Mount Type | Material | Use Case |
|---|---|---|---|---|---|---|
| UP25F | 25 cc/rev | 50 bar | Hydraulic Steering | Front Mount | Anodized Aluminium | Small boats, light loads |
| UP28F | 28 cc/rev | 50 bar | Hydraulic Steering | Front Mount | Anodized Aluminium | Compact boats, center consoles |
| UP33F | 33 cc/rev | 50 bar | Hydraulic Steering | Front Mount | Anodized Aluminium | Mid-size boats, multi-outboard |
| UP39F | 39 cc/rev | 50 bar | Hydraulic Steering | Front Mount | Anodized Aluminium | Larger boats or heavier engines |
| Accessory | Function | Compatibility | Made In |
|---|---|---|---|
| X-72 Tilt Mechanism | Adds tilt functionality to helm | UP25F–UP39F | Italy |
| X64 Square Recess Flange Kit | Provides flush-mounted appearance | All front mount helms | Italy |
| X57 Round Adapter Flange | Round bezel adaptor for clean finish | All hydraulic front mount helms | Italy |
| Remote Fill Kit | Allows remote helm reservoir refilling | Rear mount helms, or hard-to-reach consoles | - |
| Filler Kit | Used to fill Ultraflex front mount helms with hydraulic fluid | All front mount helm pumps | - |
Included in Box
- Selected Helm Pump (UP25F, UP28F, UP33F, or UP39F)
- Mounting Hardware
- Installation Instructions
- Optional: Accessories sold separately
