Ultraflex Hydraulic Steering Kits - Twin Engine Single Cylinder - Mechanical Tie Bar

The Ultraflex Hydraulic Steering Kits for Twin Engine Single Cylinder setups are designed to connect two engines using a universal mechanical A88 Tie Bar. These kits are suitable for engines up to 300 HP (non-counter-rotating) or up to 500 HP (counter-rotating), and they do not allow independent engine tilting. Ideal for older generation engines, these kits come complete with front-mount cylinders, a helm pump, hoses, fittings, and hydraulic oil for optimal performance in marine environments.

##features##

Features

• Compatible with twin-engine setups and older generation engines.
• Supports up to 300 HP for non-counter-rotating engines and up to 500 HP for counter-rotating engines.
• Universal mechanical A88 Tie Bar connects both engines but does not allow independent engine tilt.
• Adjustable engine center distance from 650mm to 950mm.
• Includes front-mount cylinders, UP28F helm pump, hoses, bulkhead restrictors, tie bar, and hydraulic oil.
• QuickFit hoses and fittings ensure a secure and easy installation.

##features##

##specifications##

Specifications

##specifications##

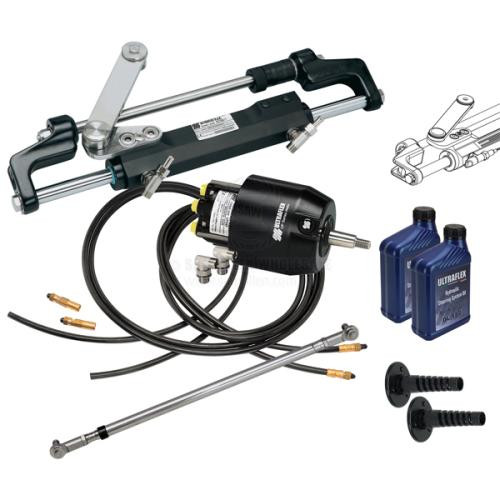

Kit Includes:

• 1 x Front Mount Starboard Cylinder
• 1 x Front Mount Port Cylinder
• 1 x UP28F Front Mount 28cc Helm Pump (4.3 Turns)
• 1 x 84187 QuickFit OB/M Hose Kit (2 x 9 Metre)
• 2 x 84119 Bulkhead Mounted Bend Restrictors (Pigtails)
• 2 x 84115 1 Litre Hydraulic Oil
• 1 x 84188 A88 Universal Tie Bar (for 650mm to 950mm twin engine centres)
