Description

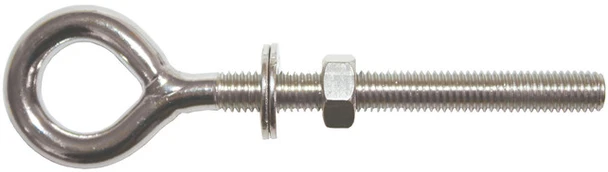

Eye Bolts - Stainless Steel Standard
- 316 grade stainless steel with welded eye and metric thread.
- 2 x stainless steel washers and 1 x stainless steel hex nut.
- S.W.L (suggested working load) is approx 25% of ultimate breaking load
| Part Number | Size | L1 mm | L2 mm | L | B | Suggested Working Load |
| RWB2581 | M6 | 60 | 85 | 55 | 13 | 250kg |
| RWB2582 | M8 | 80 | 112 | 72 | 17 | 400kg |
| RWB2583 | M10 | 100 | 145 | 90 | 21 | 600kg |
| RWB2584 | M12 | 120 | 170 | 107 | 25 | 825kg |
