Description

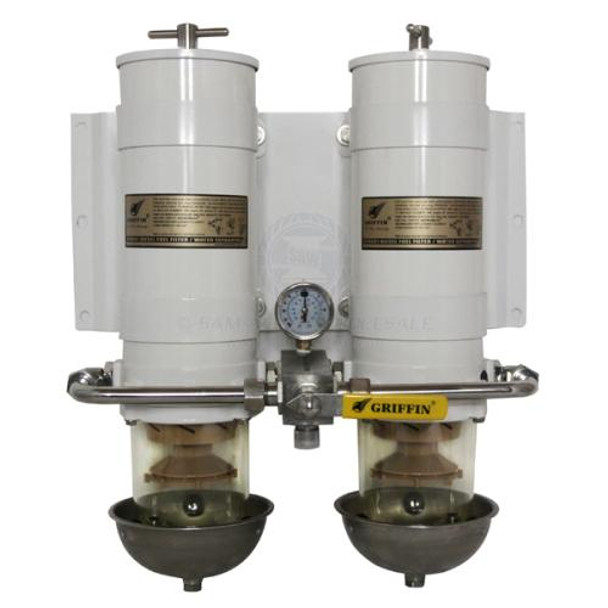

Griffin Diesel Filter Kit GTB681DM Double Manifold Bowl & Shield
• Provides unsurpassed fuel filtration and water separation, and is comparable to the Racor Marine 1000 series filters.
• The GTB681 series filter use GRIFFIN replacement element GTB68, formerly designated as G2020, to remove contaminants as small as 2 microns with that size element. Elements are also available in 10 and 30 micron sizes.
• Supplied as standard with a 10 micron GRIFFIN MICROBLOC element.
* Hose fittings are not included.
## Specifications##
| Specifications Chart |
|
| Part No. | 374132-SAM |
| Port Size | 7/8-14 inch UNF |
| Flow Rate | 1363LPH (360GPH) |
| Service Clearance | 254mm |
| Dimensions | H 542mm x W 476mm x D 253mm |
| Temperature | -20°C / +121°C |
| Clean Pressure Drop | 25.5kPa |
| Max. Operating Pressure | 103kPa |
| Unit Qty | 1 |
