Description

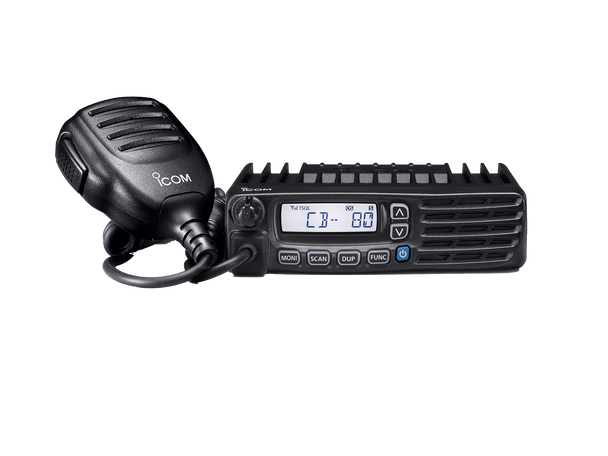

ICOM IC-410 PRO UHF CB Mobile Two Way Radio
UHF 477 MHz 80 Channel CB Transceiver
The Australian IC-410PRO UHF CB comes pre-programmed with 80 UHF CB Channels + 48 user receive channels
1W / 5W / 25W Output Power
5W output power (CB). Approved for 25W when using licensed private/commercial frequencies within 450-520MHz*
*ACMA Licensed users only
80+ Channels
80 Channel UHF CB* plus up to 35 Private Channels.**
*80 Channel UHF CB, 61-63 not present, reserved for future use.
**Must be enabled using CS-410PRO software.
Active Noise Cancel Microphone
This feature allows clear communication by reducing the surrounding noise, especially the unwanted low frequency noise received by the microphone.
CB / Commercial Use
The Compact and Rugged construction makes this product ideal for use in
Commercial environments.
Other Features
- Easy to see White backlit LCD display
- Exclusive automatic repeater scan easily finds local repeaters
- Rugged MIL SPEC construction provides shock & vibration resistance
- Silent Stand-by with CTCSS & Selcall
- Front mounted speaker for clear sound
Supplied Accessories
- Microphone HM-152
- Microphone hanger and screw set
- Microphone hanger cable
- DC power cable
- Mounting bracket
5 Year Australian Warranty
##Specifications##
General
IC-410PRO |
|||
|---|---|---|---|
| Frequency coverage |
476.4250 - 477.4125 MHz (CB) 450.0000 - 520.0000 MHz (LMR) |
||
| Number of channels |
128 Ch |
||
| Type of emission |
CB : 8K50F3E (12.5 kHz) LMR: 8K50F3E (12.5 kHz) / 16K0F3E (25 kHz) |
||
| Antenna impedance | 50 Ω nominal | ||
| Operating temperature range | - 30℃ to +60℃ | ||
| Power supply voltage | 13.8 V DC | ||
| Current drain (approx.) |
Tx | 25 W |
7.0 A |
| 5 W | 4.0 A | ||
| Rx | Max. audio |
1200 mA |
|
| Stand-by |
300 mA |
||
| Dimensions (projections not included; W×H×D) |
150×40×117.5 mm |
||
| Weight (approx.) |
0.8kg |
||
Transmitter
IC-410PRO |
|
|---|---|
| RF output power |
5W / 1W (CB) 25 / 5W / 1W (LMR) |
| Modulation |
Variable reactancne frequency modulation |
| Maximum permissible deviation |
±2.5 kHz (Narrow) ±5.0 kHz (Wide) |
| Frequency error |
±2.50 ppm |
Receiver
IC-410PRO |
|
|---|---|
| Sensitivity at 12dB SINAD |
0.25 μV typ. |
| Audio output power |
4.0 W typ. at 5 % distortion with 4 Ω load |
