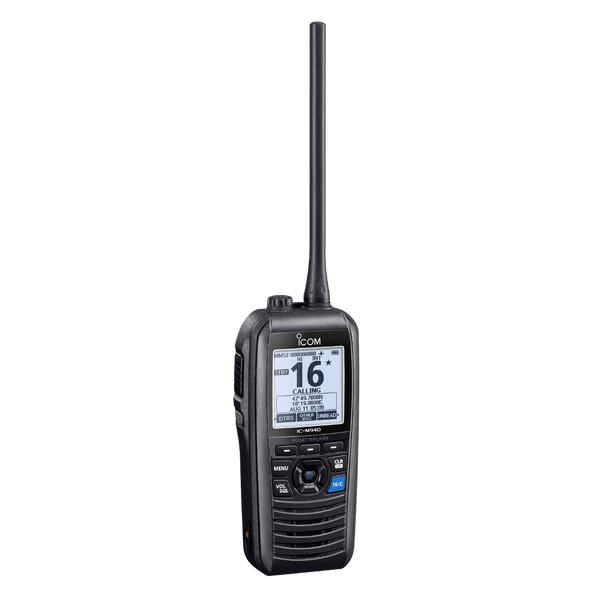

ICOM M94DE Handheld VHF Radio with DSC & AIS Receiver
ICOM's long-awaited IC-M94DE - AIS Receiver and DSC in One Marine Handheld
- AIS Receiver and DSC in One Marine Handheld - displays vessel traffic information on the screen and allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel Distress button
- 5 Watt RF Output Power and 10 Hours of Operating Time - provides 10 hours of operating time, under normal conditions
- Class-Leading 1500 mW Audio Output - high-power capacity speaker delivers a loud 1500 mW
- Simplified Navigation Function - guides you to a specified waypoint. You can assign up to 50 favourite fishing spots or destinations as waypoints
- Float ’n Flash and MOB Auto Set Functions
Other Features
- Integrated GPS receiver
- Active noise cancelling technology
- IPX7 waterproof (1 m depth of water for 30 minutes)
- Dualwatch and Tri-watch functions
- Favourite channel function
- Supports 4-digit channels
- AquaQuake prevents audio degradation from a water-logged speaker
Supplied Accessories
- BP-306 battery pack
- BC-251 battery charger
- AC adapter
- MB-133 belt clip
- Antenna
- Hand strap
##Specifications##
General
| IC-M94DE AUS Version |
||
|---|---|---|
| Frequency range | Tx | 156.025–157.425 MHz |
| Rx | 156.300–162.000 MHz | |
| DSC | 156.525 MHz | |
| AIS (RX) | 162.025 MHz | |
| Usable channel groups | INT, USA and WX channels | |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) 16K0GXW (AIS) |
|
| Current drain (at 7.2 V DC) |
TX (5 W/1 W output) | 1400 mA/700 mA (approx.) |
| RX (Inter SP/Exter SP Max. audio) | 700 mA/350 mA (approx.) | |
| Operating temperature range | –15°C to +55°C | |
| Antenna impedance | 50 Ω | |
| Dimensions (W×H×D) (Projections not included) |
60.9 × 145.8 × 43.8 mm | |
| Weight (approximately) | 357 g (With BP-306, antenna, MB-133) |
|
Transmitter
| IC-M94DE AUS Version |
||
|---|---|---|
| Output power (Hi/Low) | 5 W/1 W | |
| Max. frequency deviation | ±5 kHz | |
| Frequency stability | ±10 ppm | |
| Spurious emissions | 0.25 μW typical | |
Receiver
| IC-M94DE AUS Version |
||
|---|---|---|
| Sensitivity (at 20 dB SINAD) DSC receiver (at 1% BER) AIS receiver (at 20% PER) |
–6 dBμ emf typical –3 dBμ emf typical –107 dBm |
|
| Squelch sensitivity (Threshold) | –6 dBμ emf typical | |
| Adjacent channel selectivity DSC receiver (at 1% BER) |
65 dB 73 dBμ emf |
|
| Spurious response DSC receiver (at 1% BER) |
65 dB 73 dBμ emf |
|
| Intermodulation DSC receiver (at 1% BER) |
65 dB 68 dBμ emf |
|
| Hum and noise | 40 dB | |
| Audio output power (at 10% distortion) |
Internal SP | 1500 mW typical (8 Ω load) |
| External SP | 350 mW typical (8 Ω load) | |
Measurements made in accordance with AS/NZS 4415.2-2003 (for AUS version).
