Jabsco Service Kit - Junior Puppy Pump

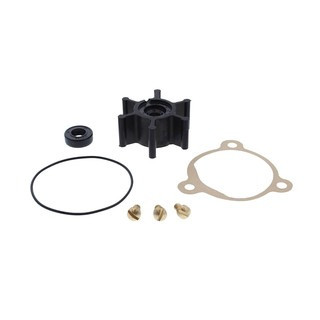

Service kit nitrile SK400-0023 includes nitrile impeller, "O" ring, seal and cover screws

The Jabsco "WATER PUPPY" range of fl exible impeller pumps have 12/24 volt DC motors for many applications including bilge pumping, deck wash, shower drain and many other general purpose applications. These pumps have bronze head units, continuously rated motors, have high discharge headsand are self priming.

They should NOT be run dry (with the exception of the utility puppies) and the motors should NOT be subject to external water or spray. Bilge debris presents no problem to these robust pumps. Choice of capacities, applications & duties.

Junior-Puppy Pumps - High Pressure Medium Flow

• Suitable for pressure deckwash or high discharge head applications
• Very high maximum head capacity of 23 metres
• Good fl ow with high pressure available simply by restricting hose inlet
• 15 litres per minute - 900 litres per hour output at 3 metre (10 FT) head
• Self priming up to 1.5 metre (5 Ft) vertical lift
• Supplied as standard with nitrile impeller for oily bilge water
• Ports are dual 3/8" BSP female and barbed to suit 25mm (1") I.D hose
