Description

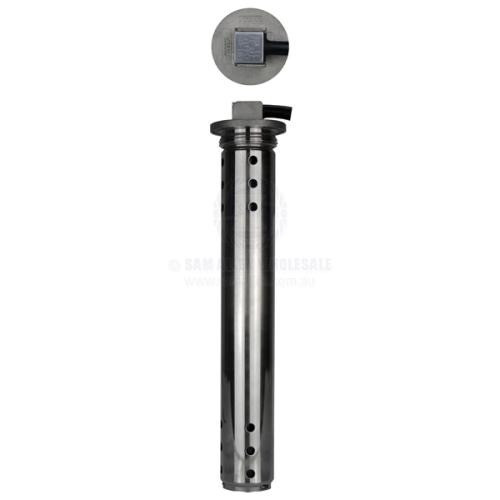

KUS Sender Waste level 1 1/4 BSPM Ohm
This waste tank LED Gauge and sender kit is used to sense and display the level of waste within a vessels waste tank. 3 LED display indicator - On-High-Full. 316G stainless steel sender with 1-1/4 inch BSPM thread. Mounting O-ring: 38mm x 2.6mm. 43mm x 3.5mm. Sender cable: 400mm tinned with PVC cover.
Refer to page 386 for mounting flange options for 1-1/4 inch BSPM senders.
Features
• Stainless steel.
• Mount Flange: 54mm.
• Mount Style: 1-1/4 in BSP
• Rubber gasket and stainless steel screws included.
## Specifications##
| Specifications Chart | |||
| Part No. | 42520-SAM | 42525-SAM | 42530-SAM |
| Length | 200mm | 250mm | 300mm |
| Mount Style | 1-1/4 inch BSP | 1-1/4 inch BSP | 1-1/4 inch BSP |
| Mount Flange | 54mm | 54mm | 54mm |
| OHMS | 240-30 | 240-30 | 240-30 |
