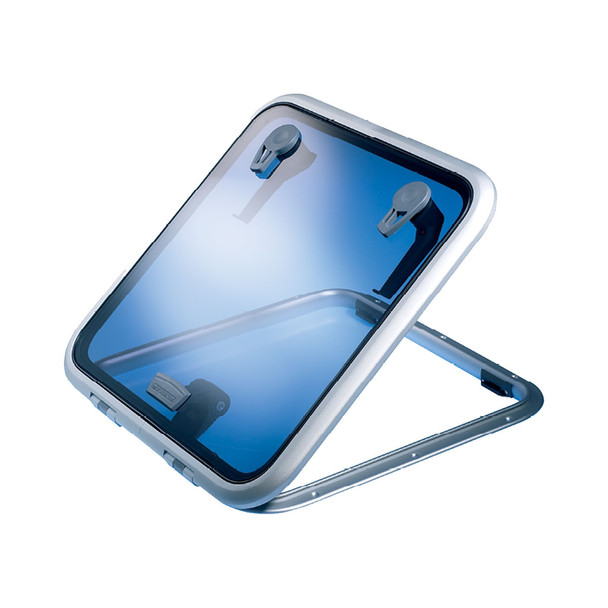

Lewmar Low Profile Hatch - Friction Hinge

The Low Profile hatch range Features a snag free soft styling which presents a sleek modern look. The range is ideal for use on a wide range of power craft and yachts. The smaller ventilation hatches are ideally suited to any deck location over toilets or galleys. The larger Low Profile hatch range can be used as a foredeck hatch on small to mid size power and sailboats. The hatch also Features Lewmar’s unique sealing system allowing easy acrylic replacement.

Features
• Size 30 and above feature outside handles
• Ability to quickly and easily replace acrylic lenses
• Ability to lock the hatch fully closed or in the vented position
• Friction hinges hold the lid open in any position up to 95 degrees (optional extra not included as standard)
• Anodised aluminium frame for corrosion resistance
• Curved upper frame for strength as well as modern styling
• CE Approved for Area 2A
• Available in round and D-Hatch configuration

To order replacement Acrylic with Seal, please contact BLA on 1300 252 725 with the following information
• Hatch overall size W x L x H
• Serial Number embossed in the acrylic
• Friction Lever or Telescopic Stay type

Accessories
172180 Handle Kit Small – LH
SP17170280 Joining Insert
172181 Handle Kit Small – RH
SP17170292 Hinge Kit (Friction)
172196 Large Handle Kit Size 30+
SP17170268 Friction Lever
SP17170260 Catch Block
SP17170296 Hinge Caps x10
SP17170266 Large Gasket Friction Lever
SP17170376 Handle Hatch External LP MP (Pair)

N.B. Insect screens can only be used with trim kits. Trims also available in Ivory.
