Description

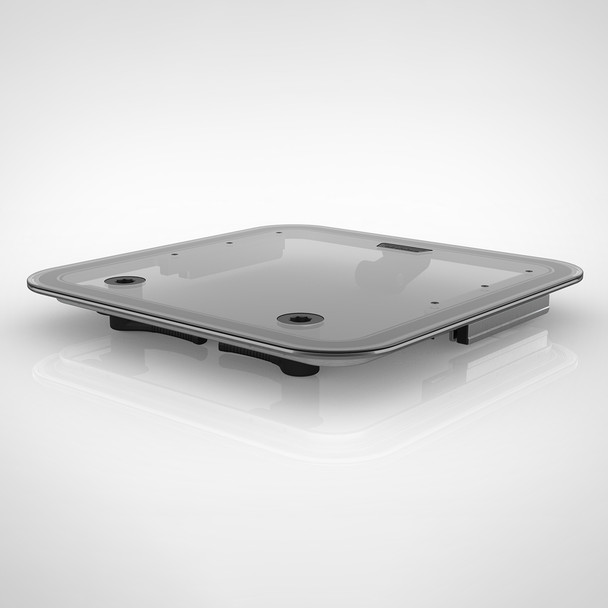

Lewmar Ultra Low Profile Hatch
Elevate your view, minimise the profile
With flush, clean lines that minimise the impact on deck aesthetics, the Ultra Low Profile hatch sits a mere 10mm above the deck, ensuring a sleek and unobtrusive profile. The design builds on the proven Lewmar Low Profile hatch system and the product is CE approved. The lid is crafted as standard from grey acrylic making it durable and lightweight. The corrosion-resistant lower frame features a silver anodised aluminium finish, providing excellent resistance even in harsh marine environments. Multiple seal profiles are used to guarantee compression and excellent watershedding capabilities.
Practical
Not only does the new Ultra Low Profile hatch provide an elegant option for OEMs that can be incorporated into new designs with ease, it also offers a seamless and straightforward retrofit solution. The matched cut-out design aligns with current Lewmar Low Profile, Medium Profile and Ocean Hatch installations, as well as other brands of hatch (please verify dimensions and corner radius) without requiring modifications or additional deck drainage holes; the design does not require an additional recess to achieve the flush aesthetic, which saves any costs associated with adapting deck mouldings. The hatch is also compatible with existing trims and flyscreens, saving any additional expense and making it a costeffective solution.
Cutting-edge
The Ultra Low Profile hatch features a newly redesigned hinge system, and the friction lever mechanism ensures the lid is held open securely in any position up to 90 degrees. The design offers two versatile external handle options. The flush bi-square handle offers a seamless look. Alternatively, an option for external opening handles on selected sizes (excludes sizes 10, 20 and 41) adds convenience and supports regulation compliance. A 360° vent position ensures optimal airflow throughout the boat for comfort and freshness without the need for expensive air-conditioning.
## Features##
Features:
- Durable and Lightweight: Crafted as standard from grey acrylic, the lid is both robust and lightweight. It sits a mere 10mm above the deck, ensuring a sleek and unobtrusive profile.
- Corrosion-Resistant Frame: The lower frame features a silver anodised finish, providing excellent corrosion resistance even in harsh marine environments.
- Easy Retrofitting: The matched cut-out design aligns seamlessly with Lewmar Low Profile, Medium Profile, and Ocean Hatches, as well as other brands of hatch (please verify dimensions and corner radius). This allows for straightforward retrofitting without requiring modifications or additional deck drainage holes.
- Cost-Effective Compatibility: Compatible with existing trims and flyscreens, the Lewmar Ultra-Low Profile Hatch offers functionality without additional expense.
## Features##
## Specifications##
| Part Number | Description | Size | Outside Dimensions (L x W) |
| 170610-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 10 SLV FLSH SPINDLE | 10 | 330 x 330mm |
| 170620-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 20 SLV FLSH SPINDLE | 20 | 272 x 417mm |
| 170630-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 30 SLV BI SQ | 30 | 397 x 527mm |
| 170640-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 40 SLV BI SQ | 40 | 485 x 485mm |
| 170641-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 41 SLV FLSH SPINDLE | 41 | 246 x 491mm |
| 170644-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 44 SLV BI SQ | 44 | 509 x 509mm |
| 170650-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 50 SLV BI SQ | 50 | 447 x 577mm |
| 170654-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 54 SLV BI SQ | 54 | 462 x 577mm |
| 170660-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 60 SLV BI SQ | 60 | 577 x 577mm |
| 170670-BLA | LEWMAR ULTRA LOW PROFILE HATCH SZ 70 SLV BI SQ | 70 | 694 x 694mm |
## Specifications##
