Description

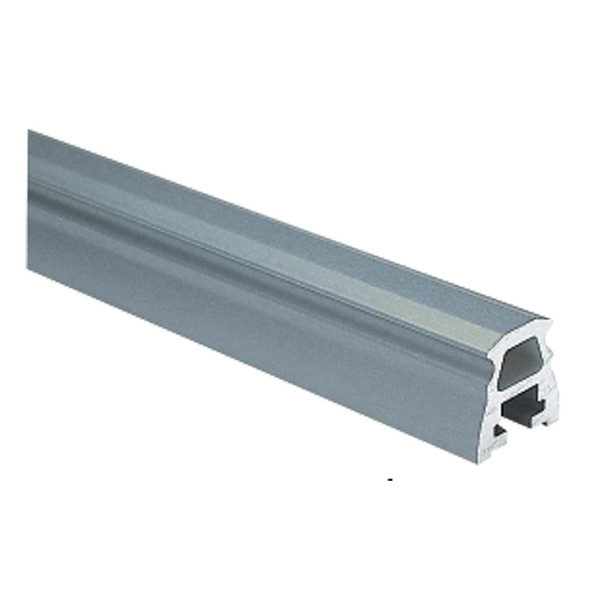

Lewmar Ocean/NTR HD Beam Track Size 2 2.5m
Available in three designs to accommodate most requirements.
1. Low profile drilled plunger track is designed to suit a wide range of plunger operated cars and stops.
2. Beam track is desgined to be used when spanning cockpits and across companion ways.
3. Sliding bolt track presents a smooth profile with no visible fixings. Designed to allow slight variances in fixing locations where bulkheads or other structures obstruct attachment below deck.
| Part Number |
Description
|
SizeLength m
|
Length m
|
Height mm
|
Width mm
|
Max Span/Hole Centre mm
|
Fixings Required mm
|
|---|---|---|---|---|---|---|---|
| 420789-BLA | Plunger Track Drilled | 1 | 1.026 | 13 | 23 | 100 | Csk M6 |
| 420790-BLA | Plunger Track Drilled | 1 | 1.526 | 13 | 23 | 100 | Csk M6 |
| 420792-BLA | Plunger Track Drilled | 1 | 2.026 | 13 | 23 | 100 | Csk M6 |
| 420795-BLA | Sliding Bolt Track | 2 | 1.5 | 18 | 30 | 100 | Hex M8 |
| 420796-BLA | Sliding Bolt Track | 2 | 2 | 18 | 30 | 100 | Hex M8 |
| 420800-BLA | Plunger Track Drilled | 2 | 1.532 | 15 | 30 | 100 | Csk M8 |
| 420801-BLA | Plunger Track Drilled | 2 | 2.032 | 15 | 30 | 100 | Csk M8 |
| 420802-BLA | Plunger Track Drilled | 2 | 2.332 | 15 | 30 | 100 | Csk M8 |
| 420804-BLA | Plunger Track Drilled | 2 | 3.032 | 15 | 30 | 100 | Csk M8 |
| 420803-BLA | Plunger Track Drilled | 2 | 3.832 | 15 | 30 | 100 | Csk M8 |
| 420805-BLA | Beam Track Heavy Duty | 2 | 2 | 51 | 51 | 900 | Hex M12 |
