Sam Allen

Manson Anchors - Supreme Anchor (Shhp) - Galvanised

(No reviews yet) Write a Review
RRP: AU$261.95 - AU$5,726.20
AU$223.75 - AU$5,474.20
Availability:
Usually Ships in 2-3 Days
Shipping:
Calculated at Checkout
Found at a lower price? Please, select required options.
  • Manson Anchors - Supreme Anchor (Shhp) - Galvanised
  • Manson Anchors - Supreme Anchor (Shhp) - Galvanised
  • Manson Anchors - Supreme Anchor (Shhp) - Galvanised
  • Manson Anchors - Supreme Anchor (Shhp) - Galvanised
  • Manson Anchors - Supreme Anchor (Shhp) - Galvanised

Description

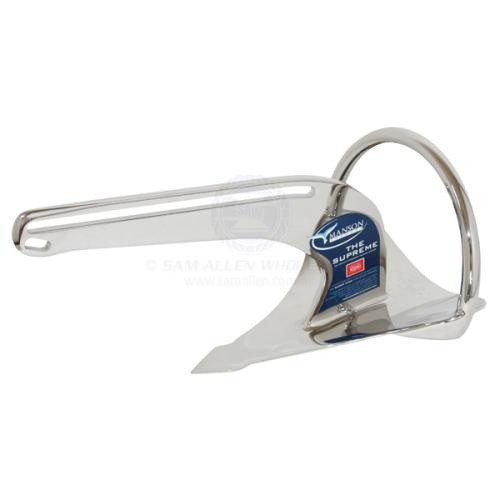

Manson Anchors - Supreme Anchor (Shhp) - Galvanised

• Conforms to most common bow roller designs and self-launches.
• Rollbar ensures anchor rolls itself to adopt the correct setting position.
• Twin slots on the fixed shank enable use in all seabeds. If using the rockslot, (long slot) the shackle can slide forward and lift the anchor out forward if it becomes fouled.
• High tensile steel shank made from 800mpa steel - 25% stronger than any other anchor.
• Sharp spearhead assists anchor to pierce the toughest seafloors, ensuring greater penetration.
• Lateral flaps enable the anchor to set immediately.
• Reinforced double-skinned laminated nose, strengthens the forward section where most loading is concentrated.
• Certified to Lloyd’s Register as a Super High Holding Power (SHHP) anchor.
• Available in galvanised or highly polished stainless steel.

## Specifications##

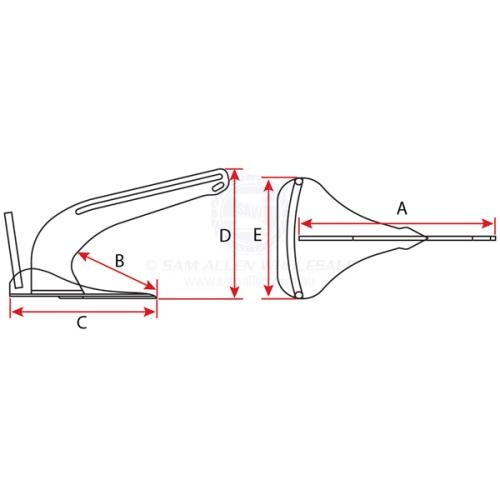

Specifications Chart
Part No. 124070-SAM 124072-SAM 124074-SAM 124076-SAM 124078-SAM 124080-SAM 124082-SAM 124084-SAM 124086-SAM 124088-SAM 124090-SAM 124092-SAM 124094-SAM 124096-SAM
Length 340mm (A) 430mm (A) 470mm (A) 550mm (A) 620mm (A) 685mm (A) 750mm (A) 850mm (A) 905mm (A) 960mm (A) 1025mm (A) 1075mm (A) 1158mm (A) 1262mm (A)
Weight 2kg (5LB) 4.5kg (10LB) 7kg (15LB) 11kg (25LB) 16kg (35LB) 21kg (45LB) 27kg (60LB) 37kg (80LB) 45kg (100LB) 57kg (125LB) 68kg (150LB) 80kg (175LB) 102kg (225LB) 125kg (275LB)
Type Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised Galvanised
Fluke Length Inner (B) 140mm 175mm 195mm 235mm 265mm 295mm 315mm 360mm 370mm 400mm 415mm 455mm 502mm 547mm
Fluke Length Outer (C) 250mm 310mm 350mm 415mm 465mm 520mm 570mm 650mm 675mm 715mm 735mm 780mm 890mm 970mm
Depth (D) 225mm 275mm 310mm 360mm 415mm 460mm 485mm 560mm 560mm 620mm 655mm 685mm 759mm 829mm
Fluke Width (E) 210mm 260mm 285mm 350mm 360mm 410mm 450mm 500mm 525mm 600mm 615mm 675mm 742mm 805mm
