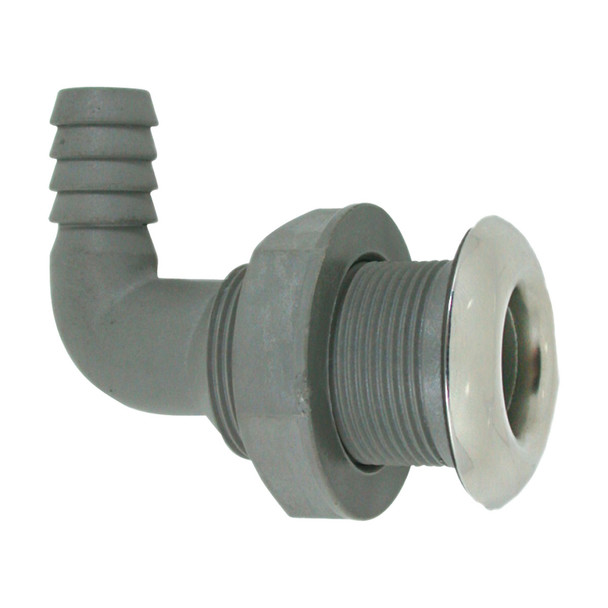

Marine Town Stalon 90 Degree Skin Fittings With Tail
Nylon and stainless steel combined. Glass reinforced nylon with a 316 grade stainless steel stamped face. Combining the strength and lightweight of a reinforced nylon with the aesthetics of polished stainless steel. Suitable for above waterline outlets.
|
Part Number
|
Tail
|
Hose Size mm
|
Overall Length mm
|
Thread Dia mm
|
Flange Dia. mm
|
Hull Thickness mm
|
|---|---|---|---|---|---|---|
| 138263-BLA | 90° | 19mm | 88mm | 34mm | 48mm | 28mm |
| 138265-BLA | 90° | 25mm | 95mm | 34mm | 50mm | 28mm |
| 138266-BLA | 90° | 28mm | 115mm | 41mm | 60mm | 28mm |
| 138268-BLA | 90° | 38mm | 119mm | 41mm | 60mm | 28mm |
