Description

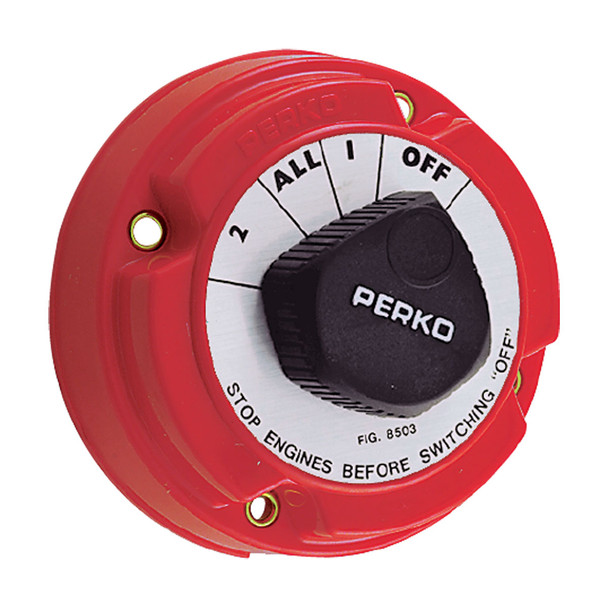

Perko Battery Switch - Alternator Field Disconnect
Four position isolation switch – off/1/all/2. Select between batteries for starting, charging, load or both batteries in parallel. Alternator field disconnect prevents damage to alternator if switched to ‘off’ while engine is running.
Specifications
• Voltage 6-32V DC max
• Continuous Rating
• 250 amps DC
• Intermittent Rating
• 360 amps DC
| Part Number |
Base Dia. mm
|
Height mm
|
Mount Screws mm
|
Terminal Stud mm
|
|---|---|---|---|---|
| 401113-BLA | 134 | 67 | 5 r/h | 8 |
