Description
RAM Mount Long D-Ball - For Lowrance HDS 12, Elite 12 Ti, SIMRAD 12, Hook2 12

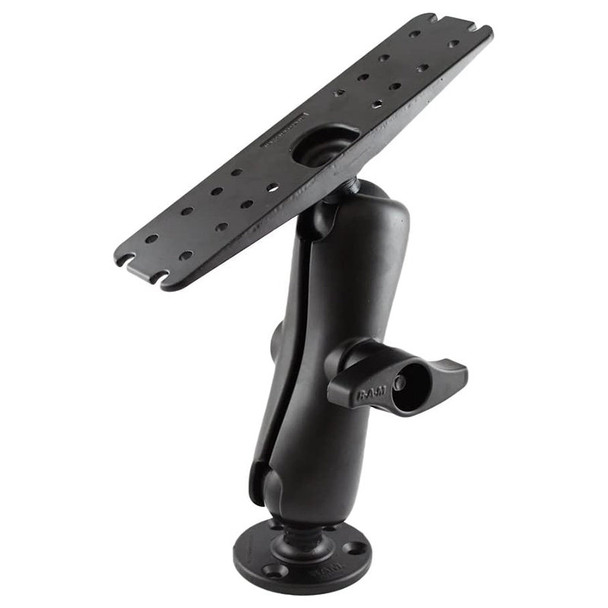

The RAM Large Marine Electronics Mount (RAM-D-111U) is a complete, drill-down mounting solution for fish finders, chartplotters, and other large electronic devices. This kit consists of D size components, including a 3.68" diameter round base, medium-length double socket arm, and 11" x 3" rectangular adapter plate.
The round base is pre-drilled with several combinations of holes, including two holes at 180° and three holes at 120°. The adapter plate contains different combinations of pre-drilled holes which will match up to popular electronic devices and gimbal brackets. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.
Features
- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 11.5"
- RAM Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
Specifications
- Hardware included: (4) .312" x .187" Shoulder Washers
- Product Dimensions: Overall Height: 11.5"
- Socket to socket length: 6.88"
- Plate Size: Top Plate: 3" x 11", Bottom Plate: 3.68" Diameter
- Ball Size: D Size (2.25")
- Weight Capacity: Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs
- Materials: Marine-grade aluminium
- Packaging Type: Poly Bag
- Weight: 4.65 lb
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
