Raymarine RV-412 RealVision 3D Thru Hull Transducer Pack Port & Starboard, Direct Connect to AXIOM and RVM1600

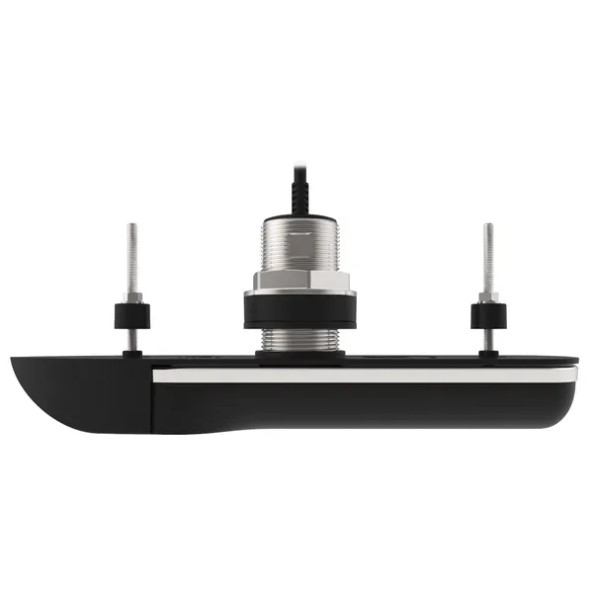

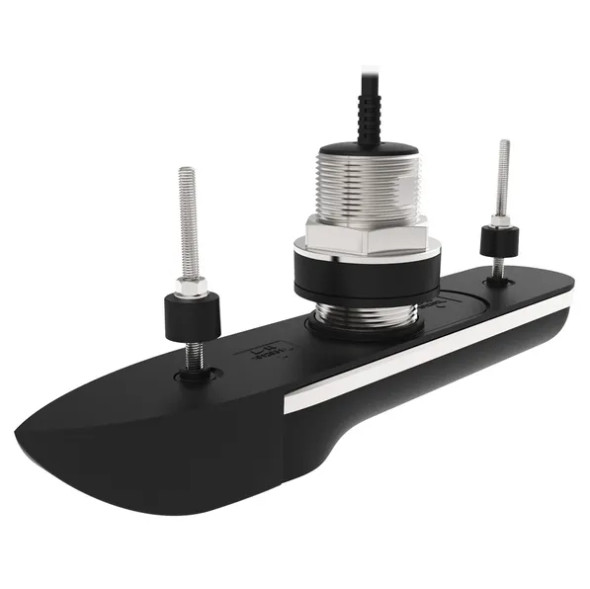

RVM-400 series stainless steel all-in-one through hull transducer brings the power and clarity of RealVision MAX technology to inboard and outboard powerboats.

The RVM-400 series transducers are compatible with the RVM1600 sonar module and Axiom 2 Pro RVM Chartplotters

The RVM-400 series transducers feature DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability.

The RVM-400 series transducers feature a rugged stainless steel through hull body suitable for fiberglass, wood, or metal hulls.

The low-profile design slips effortlessly through the water without causing drag or cavitation.

The RVM-412 transducer pairs feature titled offset sonar elements inside their surface mount housings.

The tilted elements ensure the sonar's beam patterns are correctly aligned for maximum performance while eliminating the drag and turbulence associated with a fairing-blocked transducer installation.

Bundled transducer pairs include a Y-Cable harness that internally joins the two transducers together and an 8-meter transducer extension cable.

## Features##

Features

• 12 Degree Offset & 20 Degree Offset
• Stainless Steel
• Through Hull Mount
• RealVision Max
• 8m Extension Cable
• 2m Y-cable

## Features##

## Specifications##

Specifications

RealVision Max 3D sonar range

• Sensors: Temperature sensor, AHRS (Attitude and Heading Reference System) sensor
• Sonar channels: RealVision Max 3D, SideVision, DownVision, Conical High CHIRP 600W
• Beam width: 200 kHz: 12°

Physical

• Cable length: RVM-420: 2 m (6.5 ft) + 8 m (26.2 ft) extension cable = 10 m (32.8 ft), RVM-400: 8 m (26.2 ft), RVM-412 / RVM-420: 2 m (6.5 ft) + 8 m (26.2 ft) extension cable = 10 m (32.8 ft)
• Weight: RVM-420 3.87 kg (including cable)
• Dimensions (including high-speed nose cone)
• Length: 424.69 mm (16.72 in), Width: 79.64 mm (3.14 in)
• Weight: 223.70 mm (8.81 in.) - including cable bend radius

Environmental

• Waterproof rating: IPx6 (surfaces exterior to hull only), IPx7, IPx8
• Storage temperature range: -20° C to + 70° C
• Operating temperature range: -2° C to + 55° C

RealVision Max 3D sonar range

• Sonar range: CHIRP sonar = 0.6 M to 365 m, DownVision = 0.6 M to 182 m, SideVision = 0.6 M to 91 m , RealVision Max 3D = 0.6 M to 91 m
• CHIRP sonar = 0.6 M to 365 m, DownVision = 0.6 M to 182 m, SideVision = 0.6 M to 91 m , RealVision Max 3D = 0.6 M to 91 m
