Description

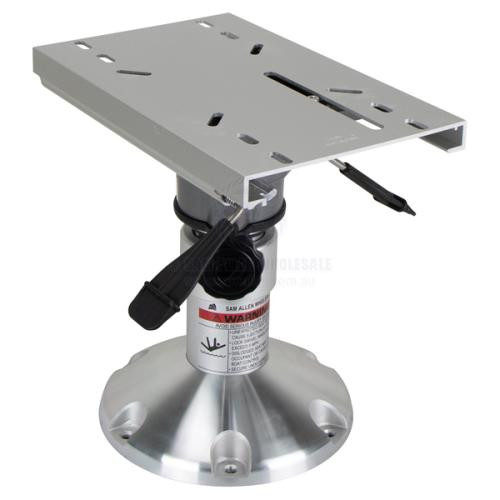

Relaxn Adjustable Pedestal - Air Ride
The Relaxn Air-Ride Adjustable Pedestal Series is designed to deliver smooth performance, reliable support, and ergonomic adjustability for marine seating. With multiple height ranges and top configurations to suit both universal and Cruiser series seats, these pedestals are engineered from high-grade materials and built for demanding marine conditions. Each model features a welded base and anodised cast aluminium post for superior corrosion resistance and long-term durability.
## Features##
Features
- Adjustable seat pedestal height for enhanced comfort and visibility
- Heavy-duty marine grade anodised aluminium construction
- Welded base with 6 x 8mm mounting holes
- STD Seat mount centres: 140mm x 140mm
- Air-ride shock absorption system for smoother ride
- Available in universal and Cruiser seat configurations
## Features##
## Specifications##
Specifications
| Part No. | Description | Height Range | Suits | Base Diameter | Slide Mount Centres | Mount Plate (L x W) |
|---|---|---|---|---|---|---|
| 293859 | Seat pedestal Air-Ride Std swivel & universal slide top | 320mm - 405mm | Universal | 230mm | 300mm x 130mm | 331mm x 207mm |
| 293860 | Seat pedestal Air-Ride Std swivel & universal slide top | 465mm - 600mm | Universal | 230mm | 300mm x 130mm | 331mm x 207mm |
| 293861 | Seat pedestal Air-Ride Std swivel & Cruiser slide top | 470mm - 600mm | Cruiser Series Only | 230mm | 257mm x 130mm | 297mm x 217mm |
| 293862 | Seat pedestal Air-Ride HD swivel & Cruiser slide top | 500mm - 650mm | Cruiser Series Only | 305mm | 257mm x 130mm | 297mm x 217mm |
| 293863 | Seat pedestal Air-Ride Std swivel & universal slide top | 600mm - 720mm | Universal | 230mm | 300mm x 130mm | 331mm x 207mm |
| 293865 | Seat pedestal Air-Ride HD swivel & universal slide top | 500mm - 650mm | Universal | 305mm | 300mm x 130mm | 337mm x 217mm |
Included in Box
- 1x Relaxn Adjustable Air-Ride Pedestal (selected model)
- Integrated seat mount plate
- Mounting hardware not included
## Specifications##
