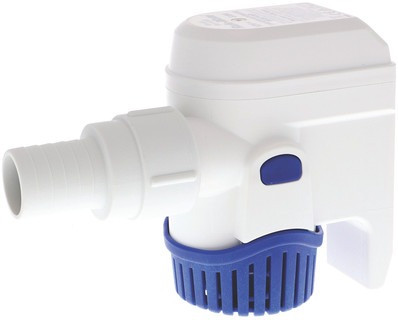

RuleMate Auto-Switch Submersible Bilge 24V Pump - 69L/min - 1100GPH

24 Volt 2.0 Amp, Automatic Submersible Bilge Pump with Built-In Water Sensor, 69LPM - Suits 25mm and 28mm Hose (RWB827)

The NEW Rule-Mate bilge pumps operate using an internal water level sensor. When the bilge water level reaches 62mm height the pump will automatically activate, removing water from the bilge. When the water level goes down to 16mm height the pump will automatically shut off until the water level rises again. Hidden air vents in the body of the pump helps prevent air locking in challenging plumbing installations. A check valve is included in the discharge nozzle to prevent water running back into the bilge. The smaller footprint of the NEW Rule-Mate pumps (only 2/3 the size of the previous versions) allows mounting in tighter spaces.

All pumps are the same physical size - 73mm depth x 112mm Height. The length is 129mm to the end of the threaded discharge nozzle and totals 165mm including the screw-on hose port. The actual snap-in strainer mounting base footprint is 64mm x 57mm with a slightly oval shape.

1100 GPH (4160 LPH) Rule-Mate Automatic Pump

• 790 US Gallons per hour - 49 Litres per minute at 1 metre head
• Supplied with 2 x straight hose outlets -1 x 25mm (1") & 28mm (1 1/8")
• RWB827 24 volt 1100 GPH - 69 LPM. Rule model RM1100B-24
• 2.0 amp @ 24V, 2.3 amp @ 27.2V. Fuse size 4 amp.

Features:

• More compact size - only 2/3 the size of the previous versions
• Auto-sense intelligence fully automatic water level sensing
• Fully automatic pump in 1 common compact housing
• Pump and sensor are internally common wired for easy installation
• No battery drain other than when the pump is in use
• 500, 800 & 1100 GPH models in both 12v & 24v versions
• Optimised impeller design gives up to 10% higher fl ow than previous versions - at the same amperage
• Built-in thermal cut-out (TCO) to protect the pump & the vessel
• Supplied with back fl ow prevention - check valve in outlet port
• Anti-Airlock design has hidden air vents in the pump body
• Safety back-up operating mode prevents continuous running if the sensor or impeller is fouled by debris
• Pump check feature - touch and hold for 5 seconds on the "touch here" button on the pump casing - to instantly check the operation of the pump
• Threaded discharge nozzle for easier installation and maintenance
• Removable strainer to access impeller area to clear any debris
• A 3rd wire allows for manual over-ride using a Rule switch panel
• 3 year limited warranty
