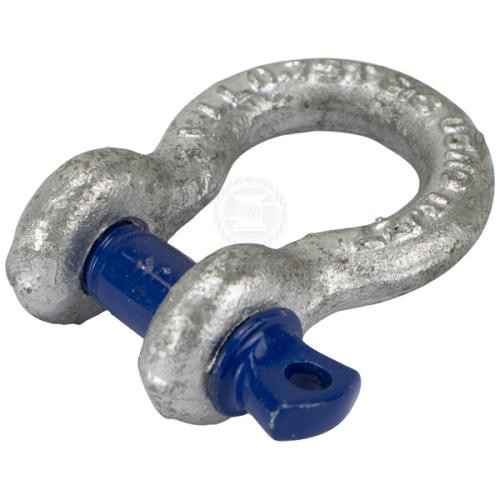

Shackles - Bow - Screw PIN Galvanised - Grade S
These heavy-duty bow shackles are manufactured to AS2741 standards and are ideal for lifting applications. Constructed with a hot-dip galvanised screw pin and marked with load limits, size, and batch information, each unit is proof tested and GP - QLD Transport Approved. Test certificates are available upon request, ensuring the highest safety and compliance standards for professional applications.
## Features##
Features
- Compliant with AS2741 Standard
- Hot-dipped galvanised screw pin configuration
- Marked with load limit, grade ‘S’ batch, size, and supplier ID
- Proof tested to 2x working load limit
- Minimum breaking force 6x working load limit
- Test certificates available upon request
- Suitable for lifting applications
- GP - QLD Transport Approved
Note: Pin colours may vary.
## Features##
## Specifications##
Specifications
| Part No. | Description | Pin Dia. | Body Dia. | A | B | C | D | WLL | Weight | Pin | Unit Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 130024 | Shackle galvanised bow grade 'S' 8 x 10mm screw pin rated 750kg | 10.0mm | 8.0mm | 31.0mm | 13.0mm | 21.0mm | 21.0mm | 750kg | 0.09kg | Screw Pin | 1 |
| 130026 | Shackle galvanised bow grade 'S' 10 x 11mm screw pin rated 1.0T | 11.0mm | 10.0mm | 35.0mm | 16.0mm | 26.0mm | 25.0mm | 1T | 0.15kg | Screw Pin | 1 |
| 130028 | Shackle galvanised bow grade 'S' 11 x 13mm screw pin rated 1.5T | 13.0mm | 11.0mm | 43.0mm | 18.0mm | 28.0mm | 27.0mm | 1.5T | 0.20kg | Screw Pin | 1 |
| 130030 | Shackle galvanised bow grade 'S' 13 x 16mm screw pin rated 2.0T | 16.0mm | 13.0mm | 48.0mm | 20.0mm | 29.0mm | 27.0mm | 2T | 0.34kg | Screw Pin | 1 |
| 130032 | Shackle galvanised bow grade 'S' 16 x 19mm screw pin rated 3.2T | 19.0mm | 16.0mm | 60.0mm | 26.0mm | 43.0mm | 40.0mm | 3.2T | 0.61kg | Screw Pin | 1 |
| 130034 | Shackle galvanised bow grade 'S' 19 x 22mm screw pin rated 4.7T | 22.0mm | 19.0mm | 71.0mm | 32.0mm | 51.0mm | 48.0mm | 4.7T | 1.00kg | Screw Pin | 1 |
| 130036 | Shackle galvanised bow grade 'S' 22 x 25mm screw pin rated 6.5T | 25.0mm | 22.0mm | 84.0mm | 36.0mm | 58.0mm | 54.0mm | 6.5T | 1.62kg | Screw Pin | 1 |
| 130037 | Shackle galvanised bow grade 'S' 25 x 29mm screw pin rated 8.5T | 29.0mm | 25.0mm | 95.0mm | 43.0mm | 68.0mm | 60.0mm | 8.5T | 2.41kg | Screw Pin | 1 |
