Description

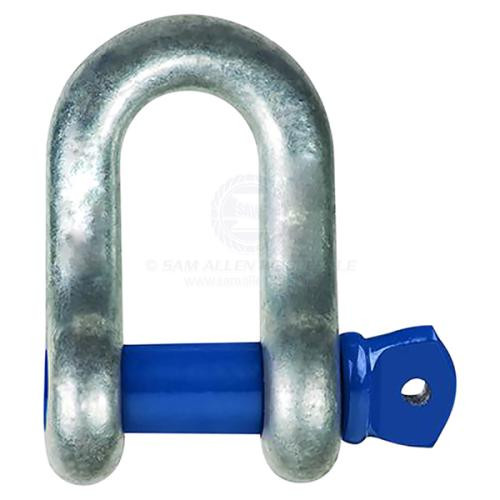

Shackles - D - Screw Pin Galvanised - Grade S
These Grade 'S' galvanised D shackles with screw pins offer high strength and reliable performance in demanding environments. Designed for secure load bearing and commonly used in lifting, rigging, and towing applications. Manufactured to high tolerances and rated with working load limits (WLL), these shackles are a dependable choice for professional use.
## Features##
Features
- High-strength Grade 'S' construction
- Durable hot-dip galvanised finish
- Screw pin for easy attachment and removal
- Clearly rated Working Load Limits (WLL)
- Ideal for lifting, rigging, and marine applications
- Pin colours may vary
## Features##
## Specifications##
Specifications
| Part No. | Description | Weight | Pin Dia. | Body Dia. | A | B | C | WLL | Pin Type |
|---|---|---|---|---|---|---|---|---|---|
| 130043 | Shackle galvanised D Grade 'S' 8 x 10mm screw pin rated 0.75T | 0.09kg | 10.0mm | 8.0mm | 26.0mm | 13.0mm | 21.0mm | 0.75T | Screw Pin |
| 130044 | Shackle galvanised D Grade 'S' 10 x 11mm screw pin rated 1.0T | 0.13kg | 11.0mm | 10.0mm | 32.0mm | 17.0mm | 24.0mm | 1.0T | Screw Pin |
| 130046 | Shackle galvanised D Grade 'S' 10 x 11mm screw pin rated 1.5T | 0.18kg | 13.0mm | 11.0mm | 36.0mm | 20.0mm | 27.0mm | 1.5T | Screw Pin |
| 130048 | Shackle galvanised D Grade 'S' 13 x 16mm screw pin rated 2.0T | 0.29kg | 16.0mm | 13.0mm | 41.0mm | 21.0mm | 33.0mm | 2.0T | Screw Pin |
## Specifications##
