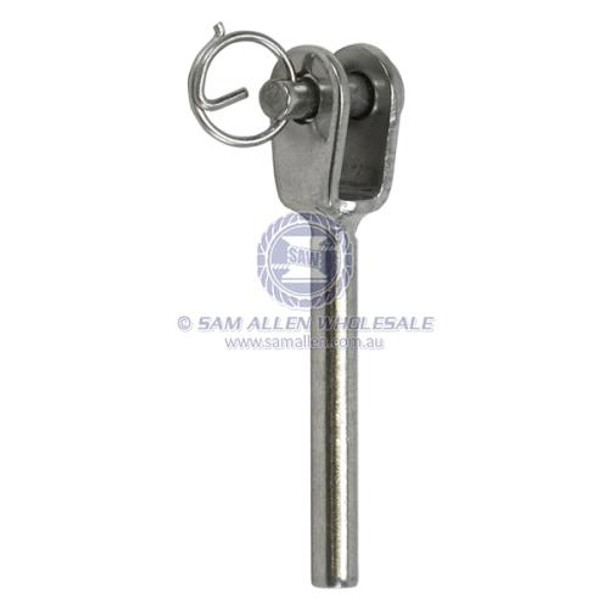

Swage - Terminals - Fork - Stainless Steel - 316G
Swage Fork Terminals made from marine grade 316G stainless steel provide a secure, high-strength connection for wire rope in balustrading, architectural, and marine rigging systems. Their robust fork design ensures reliable load distribution while offering excellent corrosion resistance, especially in coastal or outdoor environments.
## Features##
Features
- 316G stainless steel
- Fork terminal for strong and secure connections
- Excellent corrosion resistance – ideal for marine and architectural use
- Compatible with various wire rope diameters
## Features##
## Specifications##
Specifications
| Part No. | Description | Wire Size | Dia. 2 | A | B | C | D | SWL | BL |
|---|---|---|---|---|---|---|---|---|---|
| 56628 | Swage terminal 316G SS fork suit 3/32 - 2.5mm wire | 3/32" (2.4mm) | 5.45mm | 55.0mm | 6.5mm | 24.0mm | 5.0mm | 175kg | 700kg |
| 56630 | Swage terminal 316G SS fork suit 1/8 wire | 1/8" (3.2mm) | 6.35mm | 65.0mm | 7.5mm | 32.0mm | 6.0mm | 313kg | 1250kg |
| 56632 | Swage terminal 316G SS fork suit 5/32 - 4.0mm wire | 5/32" (4.0mm) | 7.5mm | 77.0mm | 10.0mm | 40.0mm | 6.0mm | 450kg | 1800kg |
| 56634 | Swage terminal 316G SS fork suit 3/16 wire | 3/16" (4.8mm) | 9.0mm | 88.0mm | 12.0mm | 57.0mm | 10.0mm | 663kg | 2650kg |
| 56636 | Swage terminal 316G SS fork suit 1/4 wire | 1/4" (6.4mm) | 12.5mm | 106.0mm | 14.0mm | 63.0mm | 12.0mm | 1000kg | 4000kg |
